TheChopman Posted July 6, 2019 Share Posted July 6, 2019 (edited) Guys I have an arcade machine with 8 buttons, joystick and trackball. How to I configure Dolphin emulator for WII and map my controls. I am using an IPAC encoder so keyboard buttons. Apologies this is not exactly LB related Chris Edited July 6, 2019 by TheChopman Quote Link to comment Share on other sites More sharing options...

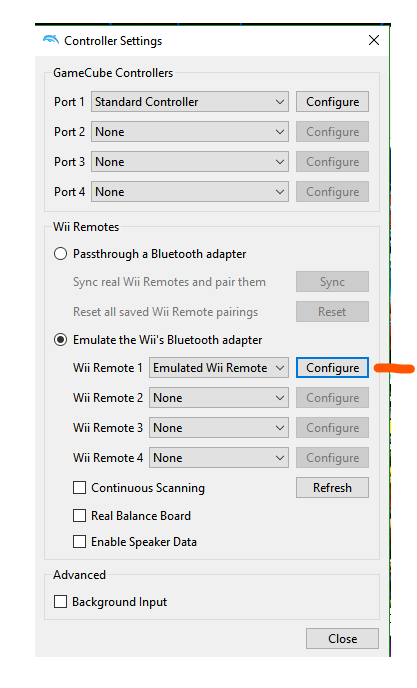

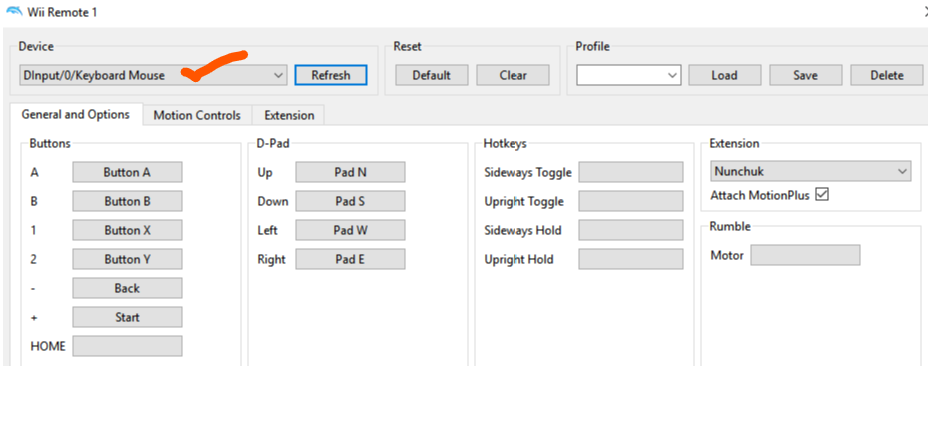

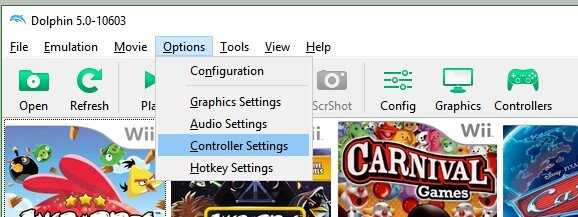

JoeViking245 Posted July 6, 2019 Share Posted July 6, 2019 Options. Controller settings.Go down to emulated Wii Remote and Configure.Set device to ...Keyboard Mouse.Then start assigning buttons etc. i.e. (in the pict.) next to "A", click "Button A" then hit the button on your cab you want to be "A". Let's assume you use button 1 on your cab. When you click "Button A" then hit cab button 1, it'll probably say "Ctrl" (or 'Control' or 'Left Control'....) D-Pad on a cab is kind of a pain, so I'd leave those be. Go to the Motion Controls tab and do like you did with "A" for Point assigning Up, Down, Left, Right to the joystick. Do that on the Extension tab as well for Stick. Be sure on General and Options tab, Nunchuck is selected under Extension. Quote Link to comment Share on other sites More sharing options...
