Module Fightcade 2

View File

---

What this module does

This module integrates Fightcade 2 into LaunchBox/BigBox (it can also work with other frontends if you adapt the provided XML) and automates repetitive actions:

• Launches Fightcade 2 automatically.

• Searches for the game selected in LaunchBox/BigBox.

• Quits the last joined room.

• Joins the room of the chosen game.

• Allows full controller navigation (via JoyToKey, AntiMicroX, reWASD, etc.) across 3 zones:

  1. Notifications (bell)

  2. Chat

  3. Contacts

---

Requirements

• AutoHotkey v1.1 (you should already have it)
• Fightcade 2
• Auto-download ROMs with lofi’s JSON pack:
  • FC2 JSON Pack Auto Download

  • Download fc2roms.zip

  • Extract the .json files into Fightcade\emulator\

  • In Fightcade → Settings → ROMs Path, set the ROMs folder used by the auto-download.

---

Module Installation

• Download the Fightcade 2 Module

1. Place fc2_RUN.ahk, fc2_SETUP.ahk, and FC2_JoinRoom.cfg.ini in the same folder.

2. Edit fc2_RUN.ahk and adjust the fc_root path if needed.

3. If your resolution ≠ 1920x1080:

   • Open Fightcade 2 fullscreen,

   • Run fc2_SETUP.ahk, hover each UI element as prompted and press SPACE to calibrate.

• Setup saves everything to FC2_JoinRoom.cfg.ini (can be fine-tuned manually).

• In the same config you can set JoyToKey paths and profiles. Example:

[joytokey]
exe=D:\HFSBox\Utilities\JoyToKey\JoyToKey.exe
fightcade_cfg=D:\HFSBox\Utilities\JoyToKey\FightCade.cfg
launchbox_bigbox_cfg=D:\HFSBox\Utilities\JoyToKey\Layout 8 Boutons.cfg

---

Controller Mapping (example with JoyToKey)

Map your controller to these logical keys expected by the AHK script:

D-Pad Up    → g   (up)
D-Pad Down  → v   (down)
D-Pad Left  → f   (previous zone)
D-Pad Right → h   (next zone)

Button A    → a   (confirm / click)
Button B    → b   (back / cancel)

L/R Button  → p   (send “gg” in chat)

Select + Start → Esc (quit Fightcade or close emulator)
Alt: R3 → Esc

• •

---

LaunchBox Setup

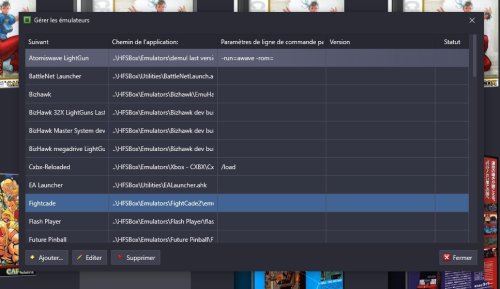

•     Add a new “emulator” in LaunchBox (name it Fightcade for example).

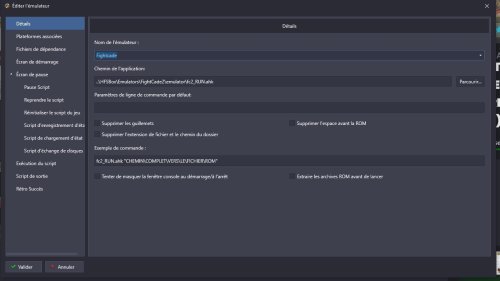

•     Application path = fc2_RUN.ahk (e.g. ..\HFSBox\Emulators\FightCade2\emulator\fc2_RUN.ahk).
•     Under Associated Platforms, add Fightcade and set it as default emulator.

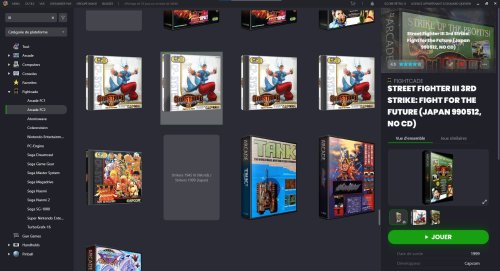

Installing Platform + Playlists

1.     Copy the provided Data folder into your LaunchBox folder (merge).
2.     Edit Data\Platforms\Fightcade.xml to set the correct path to fc2_RUN.ahk.
3.     Playlists work out of the box, no edits needed.
4.     Bezel is included, ready to use.





Included in the pack

    AHK scripts (fc2_RUN.ahk, fc2_SETUP.ahk, FC2_JoinRoom.cfg.ini).

    Bezel (ready to use).

    Fightcade platform XML (Fightcade.xml).

    Playlists.



---

⚠️ Notes

• You can only be in one room at a time.

---

Usage once in a room

• Up = g

• Down = v

• Left = f

• Right = h

Switch zones (Notifications, Chat, Contacts) with f/h.

• To challenge someone: go to Contacts, scroll with g/v, press a on the player.

• To accept/decline an invite: go to Notifications, press a, then accept/decline.

• Chat is only used for quick “gg” via the p key for now.

---

If you run into any issues or have questions, feel free to ask — I’ll try to help.

---
