Noob here - display issues with art - multiple machines multiple views - Help

[dugan26]

Hi -

I use to mess around with emulators years ago, now my son in 10 and he loves this stuff. I was blown away how far the industry has come.

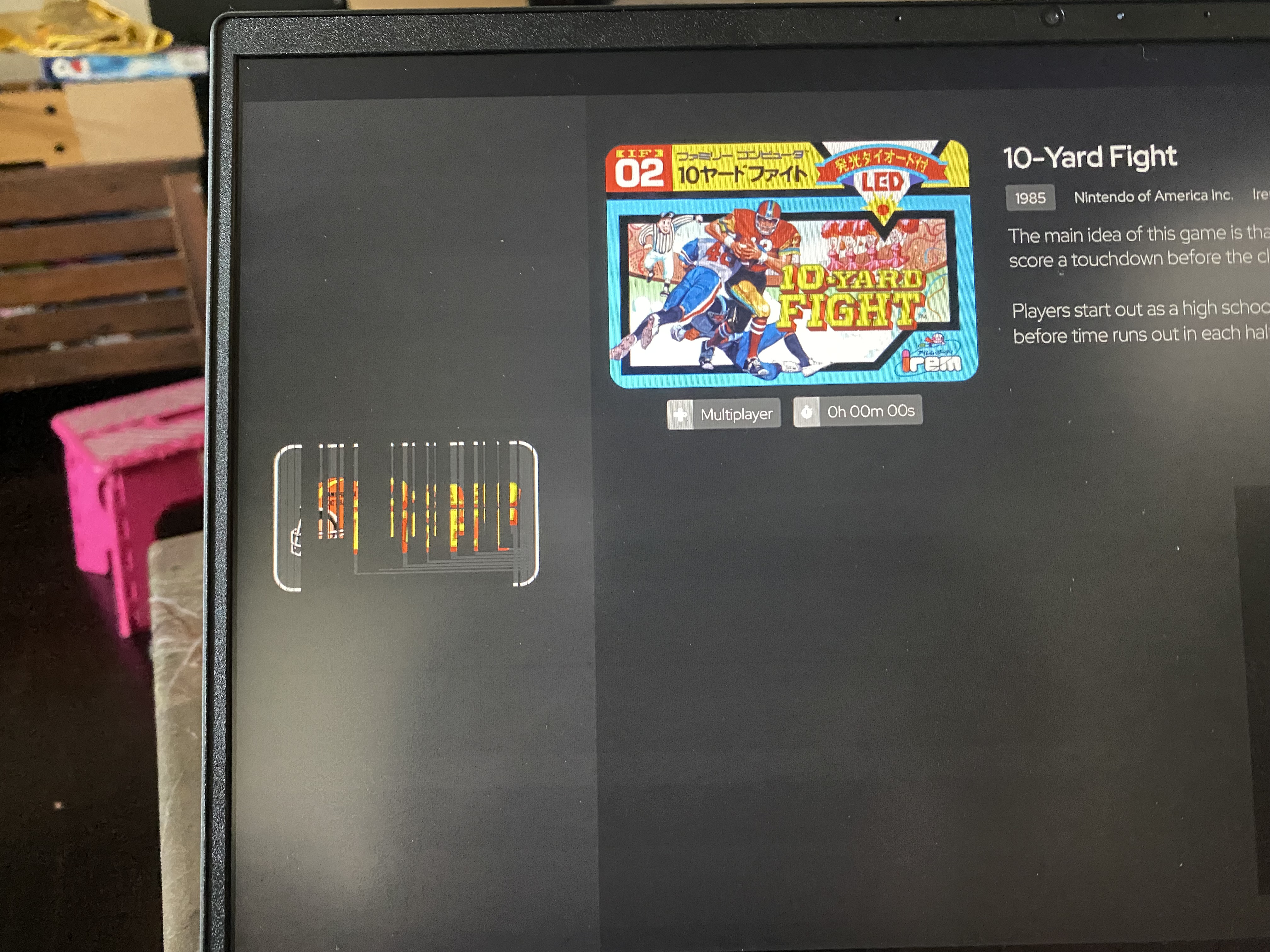

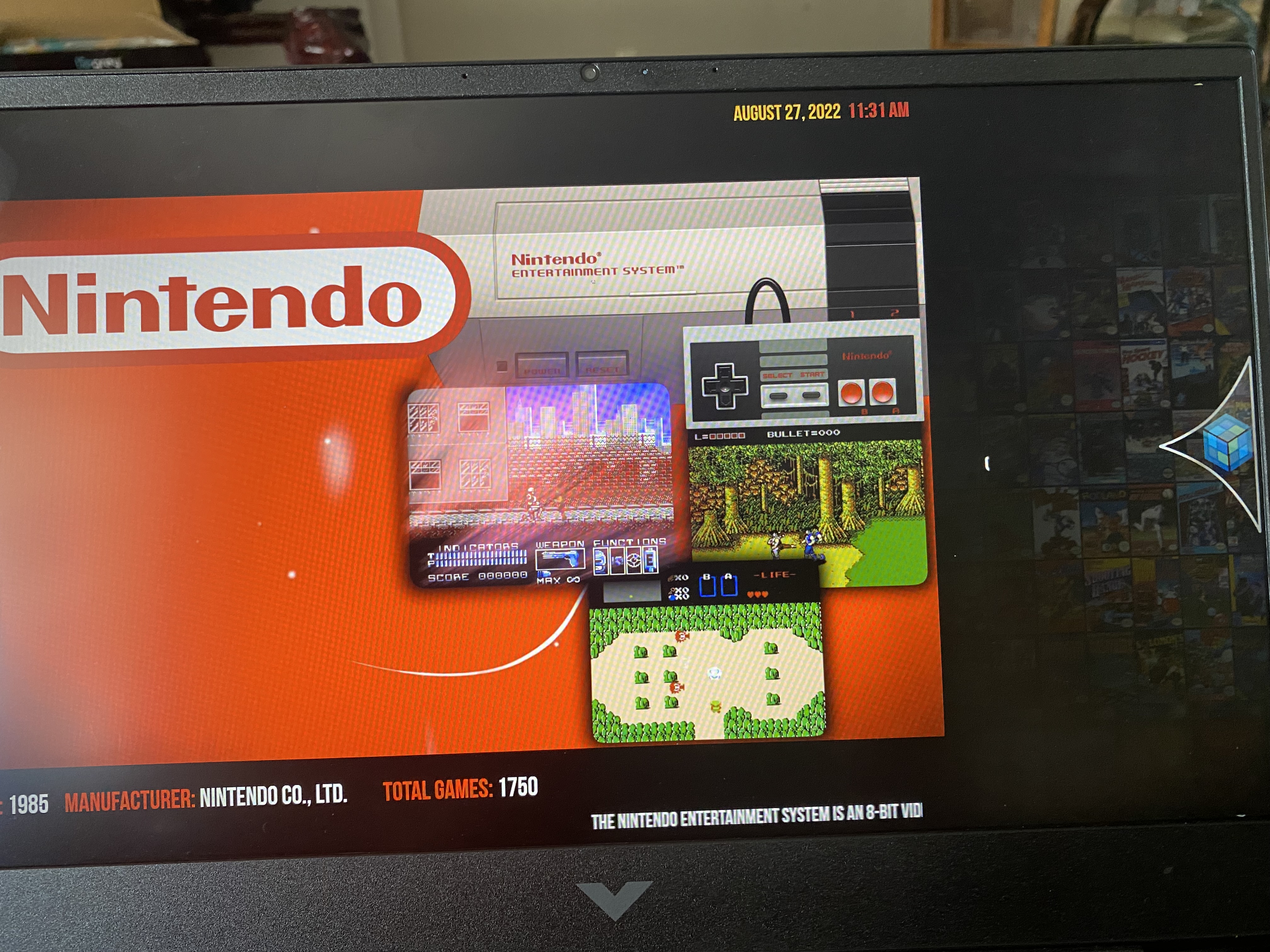

Just picked up my life time license - loaded up Two Systems  Nintendo 64 and Super Nintendo. Games work (sort of, but thats a different question regarding controllers and mappings) But can anyone answer why i dont get art on the wheel? and then if i change view i can see its there but see the distortion?

Also the list view shows "Recent" ONLY so i only see about 10 games. I have to go to the menu and hit show all games to see the whole batch. Is there a way to default it to all games?

Two computers same issue Machine 1: Win 11 Machine

2:Win7

Same results


[C-Beats]

This is almost always caused by a service running called "nahimic". Please open Task Manager and go to the services tab and see if it is listed there, and if so disable it. Then restart Big Box and you should see things correctly again.

[dugan26]

Awesome thanks! I will give it a try tonight.

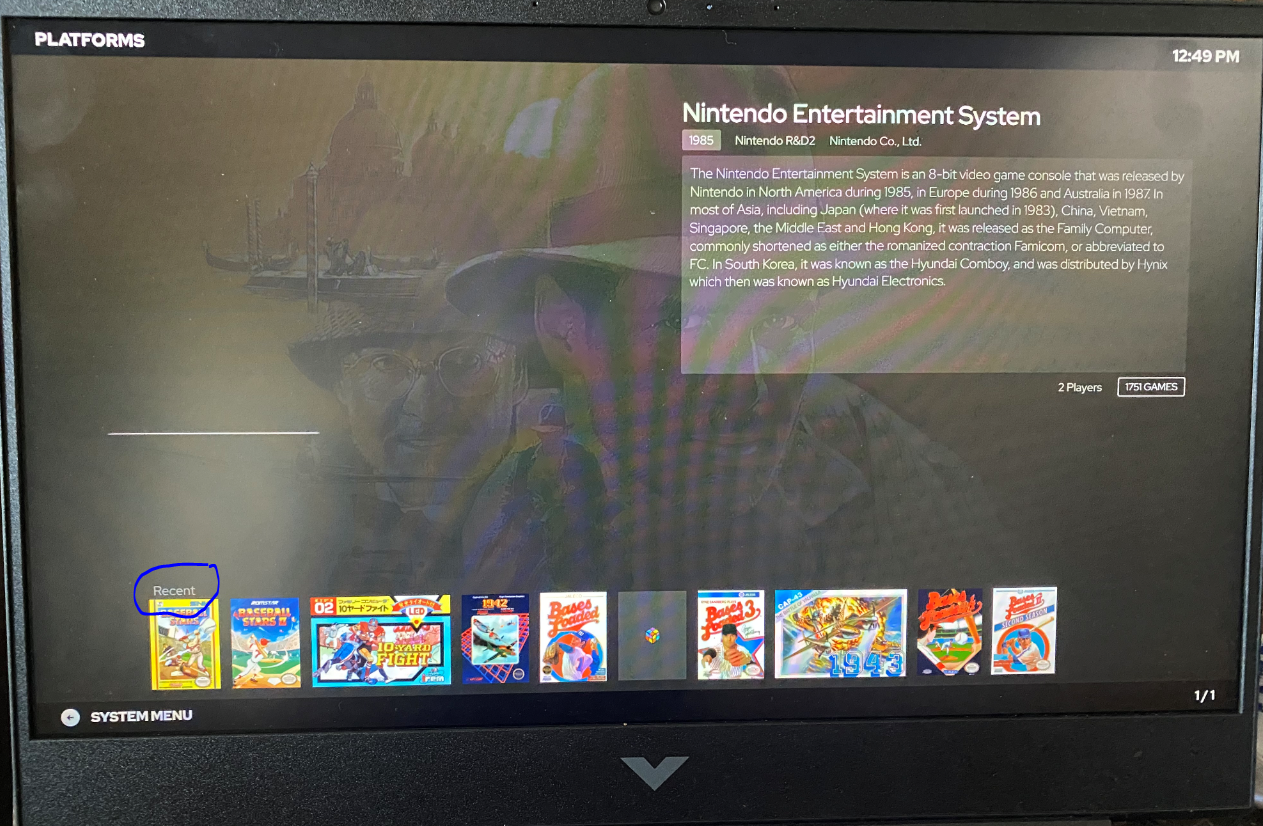

Do you know anything about this pic as well?

Games show up as "Recent" I would like the default to be "All"

Great product by the way

[C-Beats]

Only two we have for that view is "Recent" and "Favorites" (if enabled via options). Only way to see all games is to select that platform which then shows you all games for that platform in a new view

[dugan26]

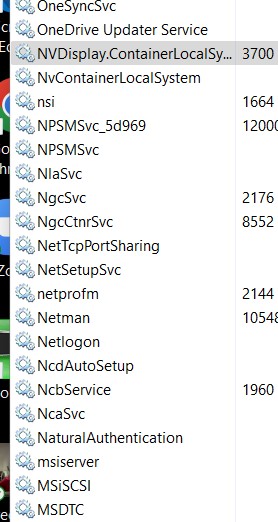

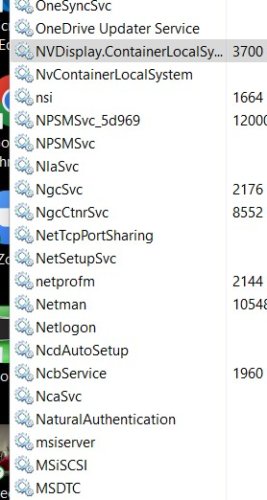

nahimic not in services

Appreciate the help ... i also checked the other machine with the same issue and nahimic was not on that machine either

Any ideas?



[faeran]

Based on your screenshot, it looks similar to problematic integrated graphics cards. Certain integrated graphic drivers have issues with WPF programs. I believe it's caused by their hardware acceleration mode, which you can disable but does require messing with the registry.

I would definitely make sure you have the latest graphic drivers from the manufacturer. Some people have said it helped when they did that.

[C-Beats]

Are you running an Intel Iris XE integrated GPU? I know they have a driver issue that causes similar issues right now. Could either turn off hardware acceleration as Faeran suggests or use Microsoft's generic display driver instead of Intel's driver.

[dugan26]

I'll check it out ...

I tried it on two different laptops and had the same issue.

Last night i tried it on my desktop and it worked fine ... all the art was normal.

I'll check out your suggestions and report back.

Thanks

[dugan26]

It's an NVIDIA card no an Iris

Any advice on the hardware acceleration settings?

Am i to assume this problem shows up quite a bit with laptops? As most would be integrated.

[dugan26]

Disable Hardware Acceleration in Windows 11/10

To disable hardware acceleration in Windows 11/10, follow these steps:

1. Right-click on the Desktop and select the Display settings option.
2. Click the Advanced display settings option.
3. Select the Display adapter.
4. Switch to the Troubleshoot tab.
5. Click the Change settings button.
6. Click the bar and move it to the None.
7. Click the OK button.

[dugan26]

In windows 11 i got to the hardware acceleration through system settings and there are two options on and off.

It was on - i turned it off - still same issue.

Any feedback here?

Is there a guide on what type of video cards dont work?

the laptops i set up were pilots to set up before i set up an official rig for my gaming so my kids can play on the TV before i buy one- are there any guidelines on what i should buy?

as i posted - i ran it on my desktop PC (the one i use for work) and it worked fine. I guess i can buy the same PC but was hoping to use a laptop so i can transport between rooms.

any advice?

Many thanks in advance

[C-Beats]

To my knowledge the only video cards known to have issues with rendering WPF applications correctly (like Big Box) are 11th gen+ Intel integrated graphics cards.

[dugan26]

My card is NVIDIA - on Laptop

HP - Victus 15.6" Gaming Laptop Intel Core i7-12650H 1GB Memory SSD

Thoughts?

Another question - has anyone ran this on a laptop ? I have to assume someone wanted to for mobility ?

[C-Beats]

I know BIg Box is ran on laptops by quite a large number of people (myself included) and they don't have issues. I'd make sure to check your settings inside of the Nvidia Control Panel and make sure your system is using the dedicated graphics card to run Big Box and isn't rendering it with your CPUs integrated GPU for some reason. I've heard of users in the past having a issue similar to that and it causing issues.

[dugan26]

Solved!!!!
That was it !!!!

You are my Hero ...

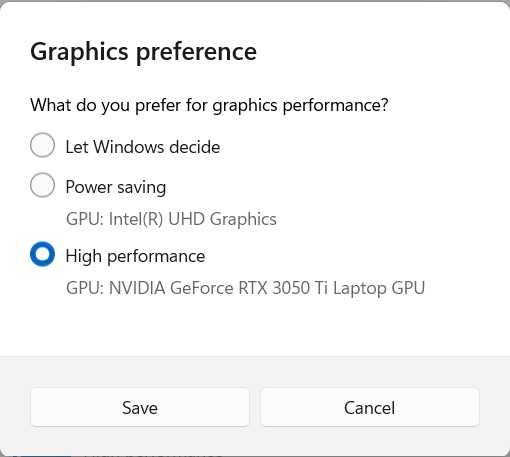

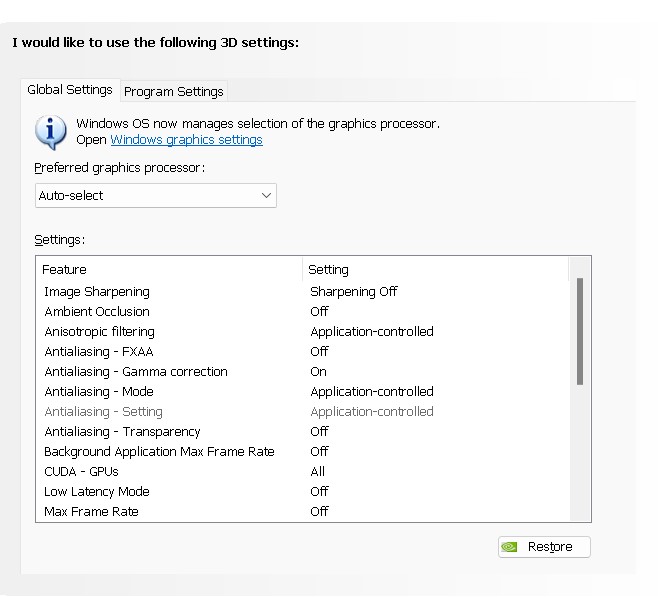

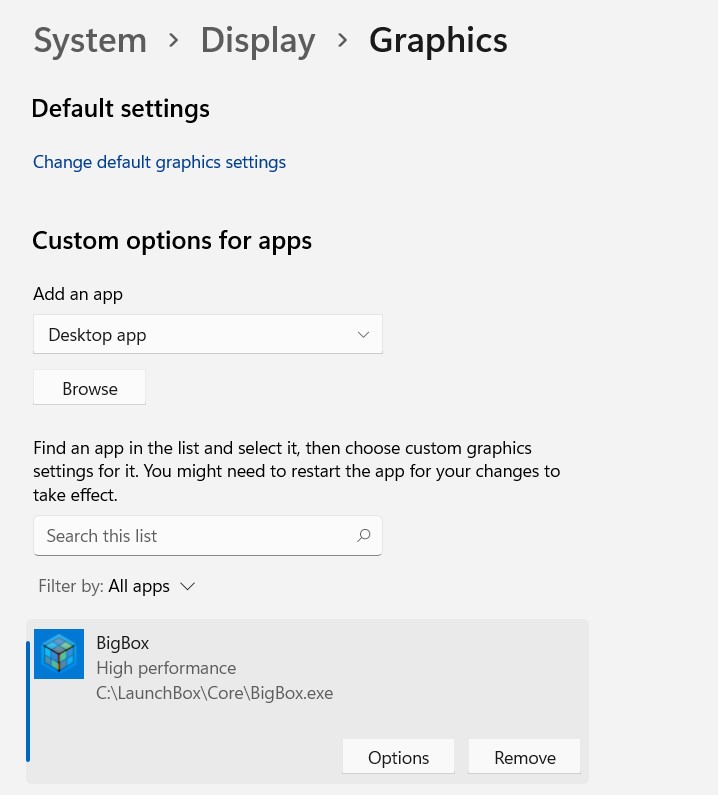

Here are some screen shots of the settings:

[dugan26]

Thanks Again

and Great product !!!!
