About This File
MAME Curated Platform Softlist Importer for LaunchBox (v1.0.0)
Have you ever wanted to import your MAME Software Lists (softlists) into LaunchBox in a clean, organized, playble, and automated way? This plugin is designed to do just that, acting as a powerful companion to tools like mess-curator.
It goes beyond simple importing by using a highly-configurable YAML file to intelligently map MAME systems and softlists to the correct LaunchBox platforms, apply the right emulator settings, mark games as broken if there is relevant metadata, and even handle complex scenarios like clones and importing artwork.
This plugin, when importing using my MAME 0.278 system-softlist YAML preset, will add 106 Platforms and ~16k games to your Launchbox collections, all ready to play, or at least those that I tried :-)
Important Plugin Note
Note: This is NOT a successor nor replacement for the amazing MAME Software Lists Import Tool - plugin 6.0.2 that is developed by @JoeViking245 that also serve the purpose to import MAME softlist into Launchbox. The original tool is perfect for users who want a simple, direct way to import softlist games using the MAME hash XMLs. If that's your goal, I strongly recommend using it.
This plugin, however, was inspired by it and was born from my own OCD needs and is designed for a more complex, automated workflow. It excels at creating highly customized "curated" platforms that can contain a mix of different softlist media, obscure systems, and custom launch commands—all managed through a central configuration file that simplifies maintenance for future MAME updates. The curated list (system-softlist YAML) used by this plugin is also maintained by me and is readily available as preset by this plugin. Perhaps that list will be contributed by the communities if it is able to gain some attention 🙂
Release Note
- 2025.07.11 - Initial release to the public community Launchbox forum
Motivation
While there exist other tools can import MAME Software Lists such as MAME Software Lists Import Tool by @JoeViking245, they often fall short when dealing with the complexity and quirks of MAME's database. This plugin was created to solve common frustrations:
- Platform Clutter: MAME often has multiple system drivers and media types (cassette, floppy, cartridge) for a single real-world platform. Other importers can create a messy platform list (e.g., "Amstrad CPC (Cassette)", "Amstrad CPC (Floppy)"). This tool intelligently maps them all to a single, clean platform like "Amstrad CPC".
- Manual Emulator Configuration: Getting softlist titles to run correctly often requires specific command-line arguments for each game or media type. This tool automates that process entirely based on a flexible configuration file.
- Complex System Mapping: What about systems that have no softlists but are still desirable to import, like JAKKS Pacific Plug & Play devices? This tool allows you to map them to the correct platform, ensuring they are not overlooked. Or even better, having a mixture of systems and softlist titles under one single platform, e.g. some JAKKS Pacific Plug & Play devices has pluggable soft keys.
- Fine-Grained Control: The import process is driven by a powerful YAML file, giving you complete control to override default settings, define custom command lines for specific games, and handle exceptions gracefully.
In short, this plugin was built for curators who want their MAME softlist collection in LaunchBox to be not just imported, but correctly and cleanly organized with minimal manual effort. What's best is that job is already done for you by me, which I also maintained a template here.
Key Features
- Wizard-Style Interface: An easy-to-use, step-by-step wizard to guide you through the import process.
- Intelligent Platform Mapping: Uses a YAML configuration to map multiple MAME systems and softlists to a single, clean LaunchBox platform (e.g., mapping a2600, a2600_cass, etc., all to "Atari 2600").
- Automatic Emulator Configuration: Sets the correct MAME driver and command-line parameters for each game, ensuring they are immediately playable.
- Advanced Clone Handling: Choose how to handle clone ROMs:
- Import as Additional Apps (Recommended).
- Import as separate, standalone games.
- Skip them entirely.
- Artwork & Manuals Importing: Automatically finds and copies associated artwork (Gameplay, Title, Select Screens) and manuals from your MAME extras folders.
- Game Health Status: Automatically flags games as "Broken" in LaunchBox if they are marked as supported="no" or status="preliminary" in MAME's database.
- Detailed Progress Reporting: See real-time updates on which platform and file is being processed.
- Cleanup Options: Can remove all existing games from a platform before import to ensure a fresh start.
How It Works
The importer relies on three main sources of information:
- Your Curated ROMs Folder: It scans a folder where your ROMs are organized by platform, system, and softlist. This structure is essential for the importer to understand the context of each file.
- MESS's XML Database (mess.xml): This file provides the ground truth for all machine information, software details, and parent-clone relationships.
- YAML Configuration (system_softlist.yml): This is the heart of the importer. It defines how a system or softlist titles is mapped to LaunchBox platforms, which emulator to use, what custom command-line arguments are needed, and more. This file gives you complete control over the final import.
The YAML Configuration (system_softlist.yml) can be automatically generated using my mess_curator tool.
The tool processes this information to create perfectly configured game entries in LaunchBox, complete with metadata, artwork, and the correct launch commands.
Dependencies
To use this importer plugin, you must first organize your MAME softlist ROMs using a companion tool, mess-curator CLI/UI that I developed.
The importer relies on the specific folder hierarchy and metadata references created by mess-curator's system_softlist.yml configuration. You can either use a preset system_softlist.yml provided by mess-curator or generate your own.
Prerequisites
Before you begin, you will need:
1. MAME Curated Softlist Importer Launchbox Plugin
Download and place the MAMECuratedSoftlistImporter.dll file into Launchbox\Plugins\MAMECuratedSoftlistImporter folder.
2. Curated ROMs Folder
A folder containing your MAME softlist ROMs, organized in a specific structure.
My mess-curator companion tool can generate this structure for you via mess-curator copy-roms subcommand.
- Your_Base_Roms_Folder/ <-- e.g., "roms"
- platform-friendly-display-name/ <-- e.g., "jakks-pacific-tv-game"
- mame_system_name/ <-- system without any softlist titles, e.g., "jak_batm"
- system.zip <-- e.g., matches the mame_system_name (zip file), should only have one single zip file
- mame_system_name/ <-- system with softlist titles, e.g., "jak_dora"
- softlist_name/ <-- e.g., "jakks_gamekey_nk"
- softlist_game1.zip <-- e.g., "dora.zip"
- softlist_game2.zip <-- e.g., "popsnow.zip"
- softlist_game3.zip <-- e.g., "volbird.zip"
Steps
- Download the latest release from mess-curator Releases page.
- Run python src\mess_curator.py and go through the initial setup wizard until you reach the point where it download the mess.xml for your matching MAME romset version. Refer here for the initial setup.
- Run python src\mess_curator.py copy-roms to start copying roms from your MAME romset adhering to the system/softlist structure defined in the system_softlist.yml file.
- Check your output rom folder, profit!
3. MAME/MESS XML File
An XML file containing metadata for non-arcade systems that matches your MAME ROMset version, downloadable from https://www.progettosnaps.net/mess/repository.
E.g. for MAME 0.278, download https://www.progettosnaps.net/download/?tipo=mess_xml&file=/mess/packs/xml/mess278.zip.
4. system_softlist.yml YAML Config File
This is the most important file that defines the metadata for the rom files detected during import configurations. You can use a pre-defined template that is selectable in Step 1 Setup Wizard with my mess-curator tool.
This file is critical. It tells the importer how to handle each system and softlist titles. Here is an example snippet with explanations:
# This is a single entry for the Amstrad CPC system.
amstrad_cpc:
# A list of all MAME system/driver names that should be mapped to this platform.
mame_system_names:
- cpc464
- cpc664
- cpc6128
# ... and so on.
# The final, user-friendly name for the platform in LaunchBox.
platform_name: Amstrad CPC
# A list of all MAME softlist names that belong to this platform.
softlist_names:
- cpc_cass
- cpc_flop
# (Optional) The category for this platform in LaunchBox.
platform_category: Computer
# (Optional) Defines the emulator and command-line parameters.
emulator:
# The name of the Emulator entry in your LaunchBox setup.
name: MAME (Cartridge)
# {mame_system_name} and {media_type} are placeholders that the importer will fill in.
default_command_line_parameters: '{mame_system_name} {media_type}'
See my mess-curator repo README here for more information.
5. MAME (MESS) Emulator
Create an emulator named as MAME (MESS) and configure it to point to your mame.exe emulator. The emulator name is not hard coded in the plugin itself, and is lookup from the system_softlist.yml, and MAME (MESS) is the default emulator name specified in that file.
Usage: Step-by-Step

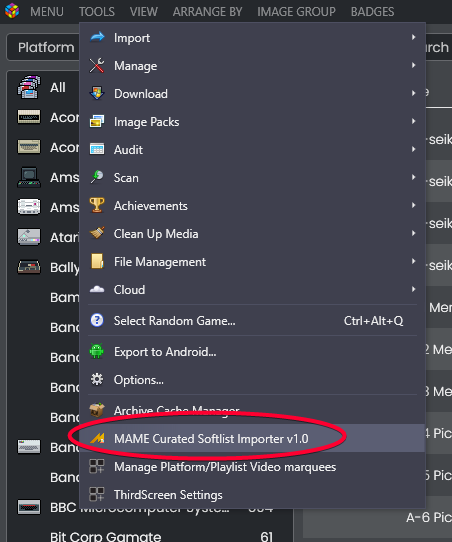

The importer is designed to be run from within LaunchBox (Tools > MAME Curated Softlist Importer).

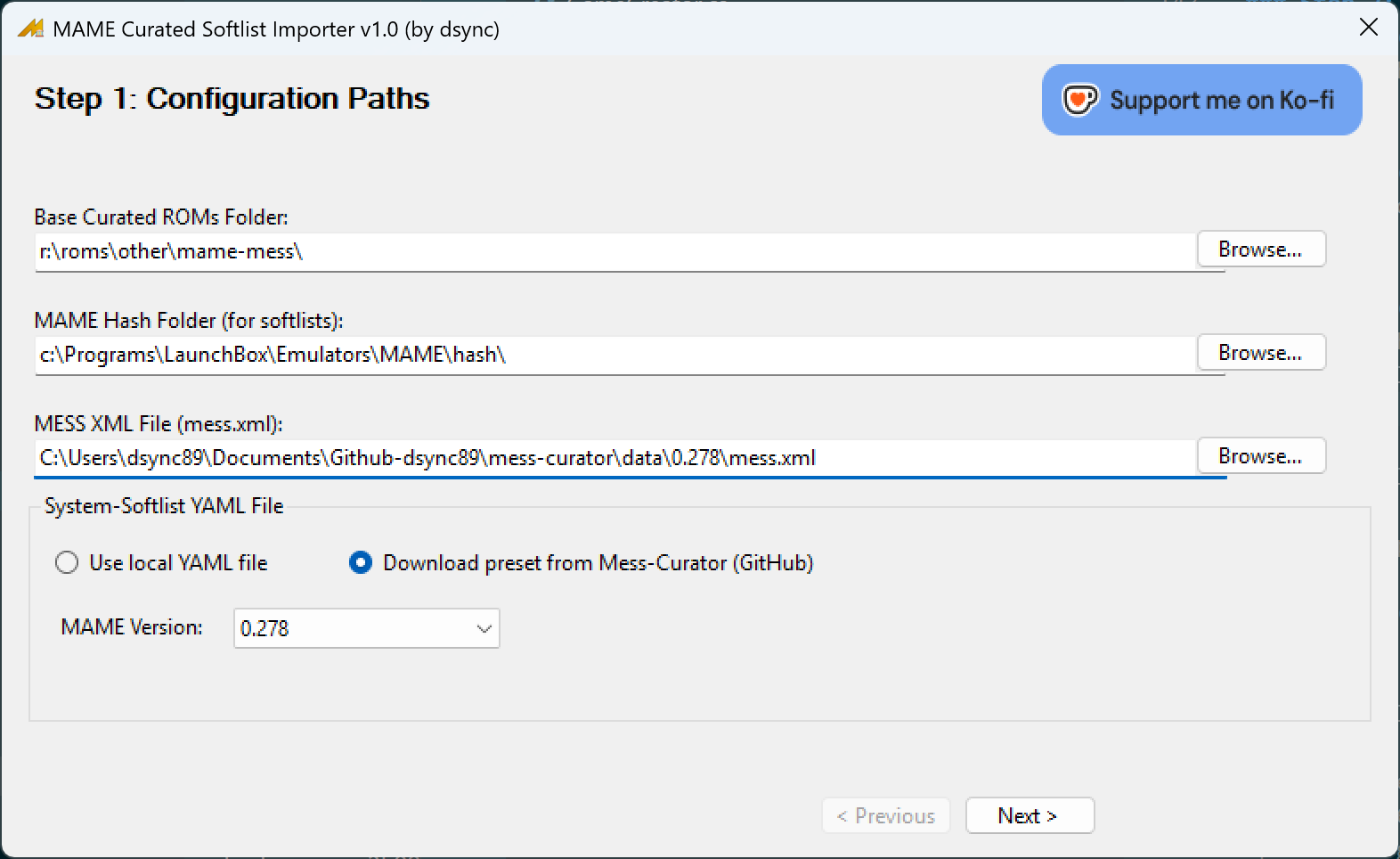

Step 1: Configure Paths
Set the paths to your ROMs, MAME hash folder, MAME XML file, and the system softlist YAML file.
For the system softlist YAML file, you can also automatically select a template matching your MAME ROMset version from my mess-curator repo.

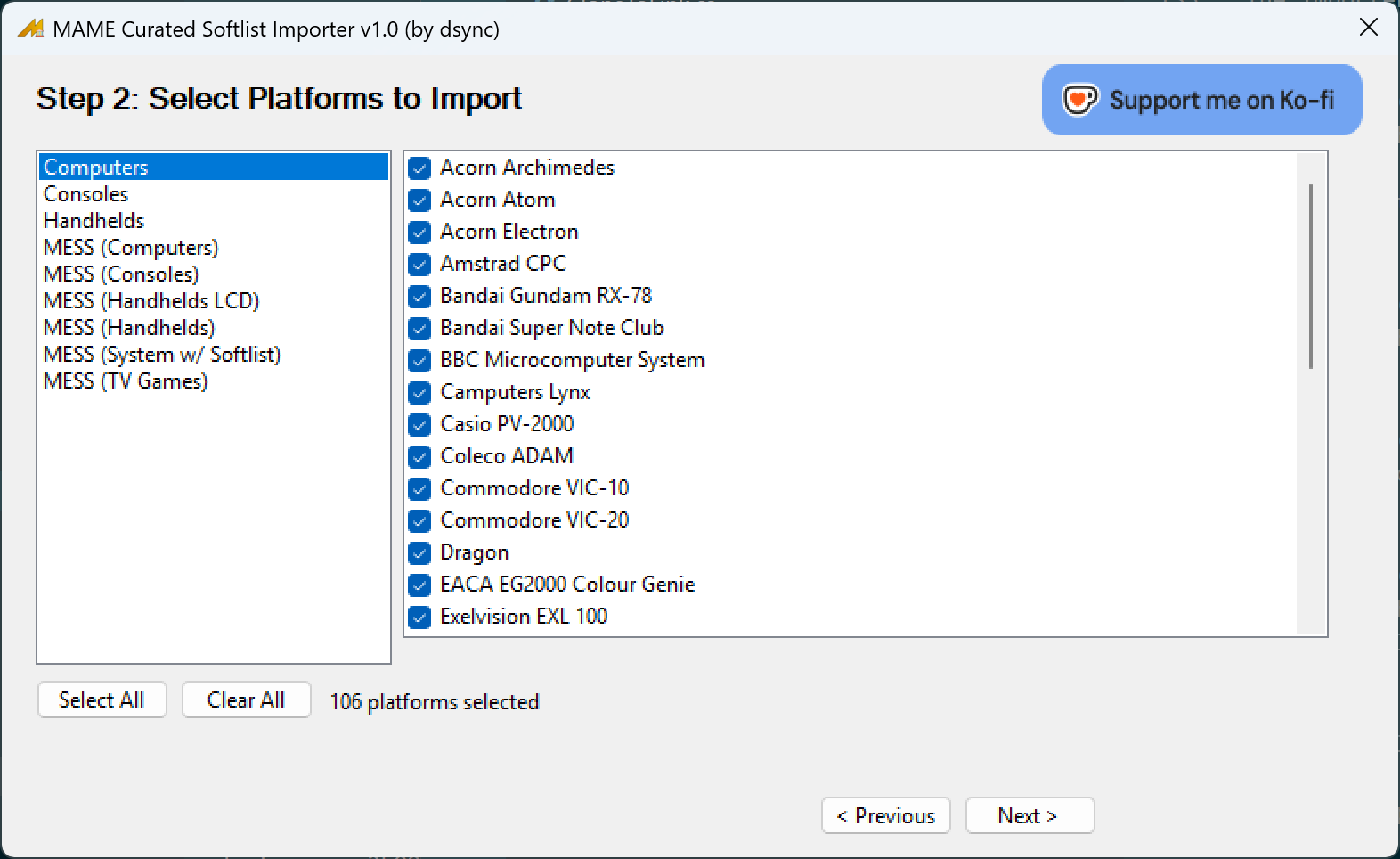

Step 2: Select Platforms
Choose which platforms (as defined in the system softlist YAML file) you want to import or update. You can select by category and see a list of platforms that belonged to that category.

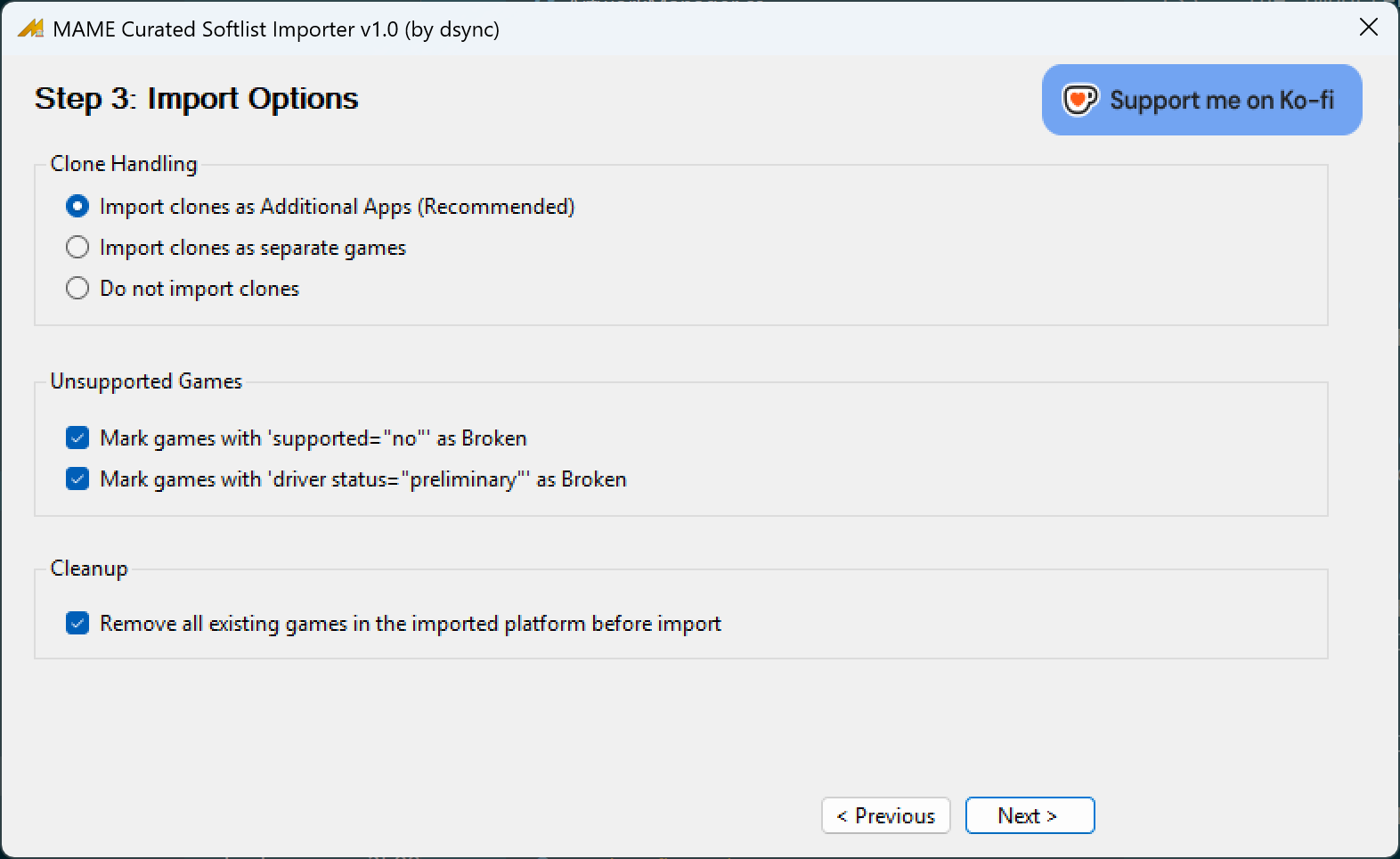

Step 3: Import Options
Configure how clones and unsupported games are handled. You can also choose to remove existing games in the platform before importing to ensure all rom paths are up to date.

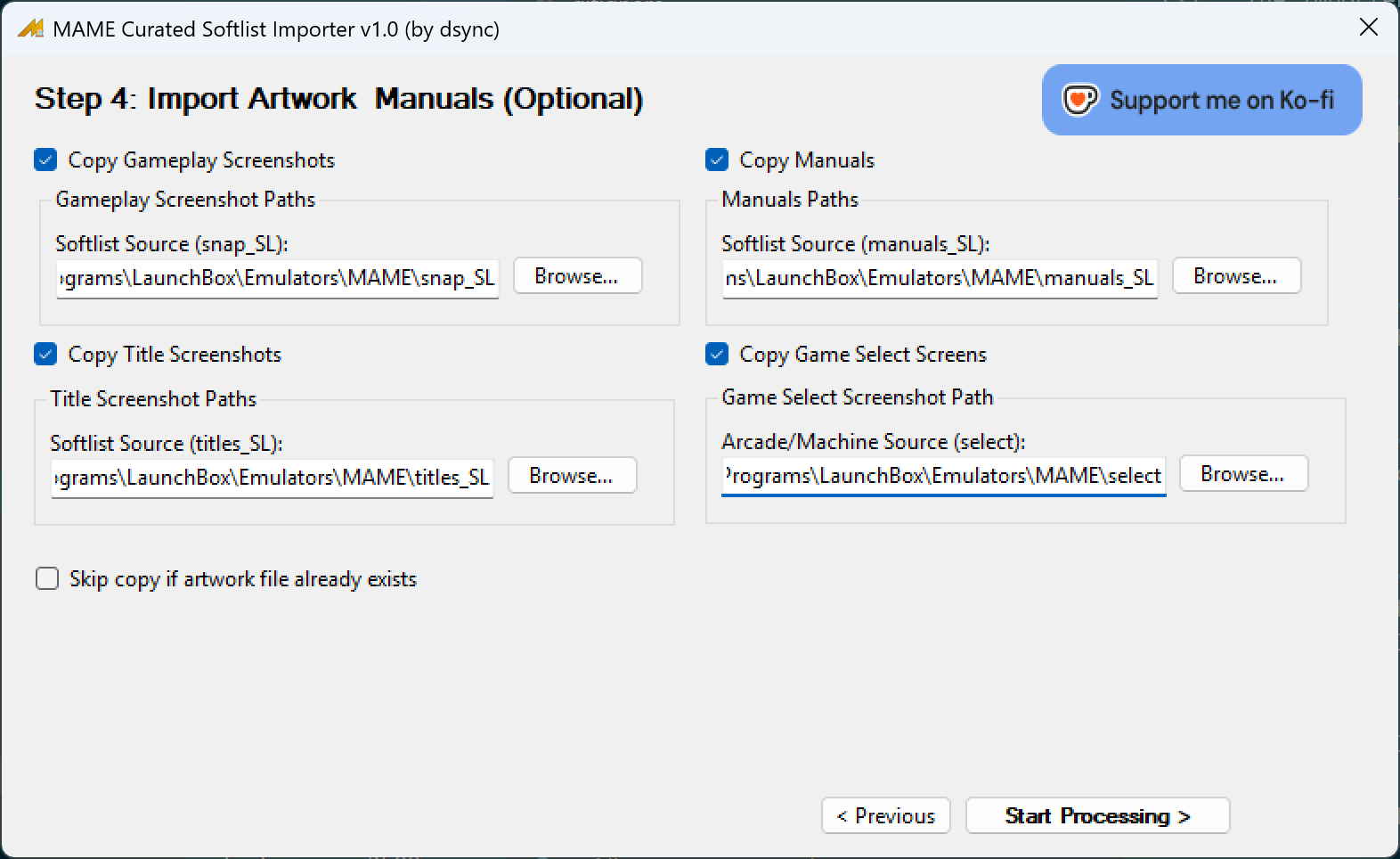

Step 4: Import Artwork & Manuals
Select which types of artwork and manuals you want to copy over from your MAME extras folders. Ideally you want all since Launchbox database might not have the snaps for all of these softlist titles. The plugin will intelligently mapped each artwork type to the right Launchbox artwork folder for each selected platform.

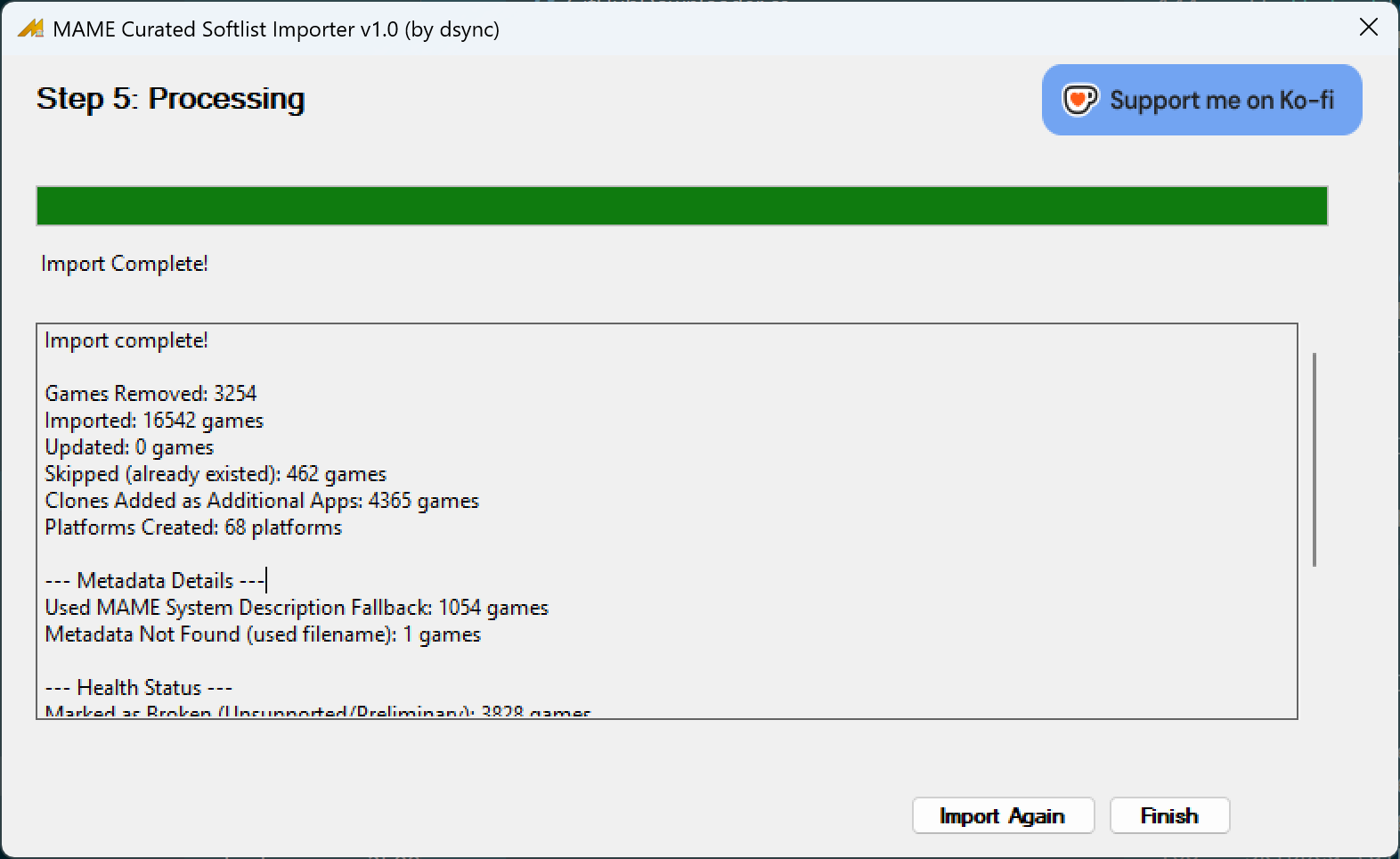

Step 5: Processing & Summary
The tool will now process all selected platforms, providing real-time progress updates. Once complete, it will display a detailed summary of the import session. The screenshot above shows the output for all 105 platforms (took ~5 minutes).
Import complete!
Games Removed: 3254
Imported: 16542 games
Updated: 0 games
Skipped (already existed): 462 games
Clones Added as Additional Apps: 4365 games
Platforms Created: 68 platforms
--- Metadata Details ---
Used MAME System Description Fallback: 1054 games
Metadata Not Found (used filename): 1 games
--- Health Status ---
Marked as Broken (Unsupported/Preliminary): 3828 games
--- Artwork & Manuals Summary ---
Title Screens Copied: 6886
Gameplay Snaps Copied: 7583
Select Screens Copied: 117
Manuals Copied: 424
A Note on Saving: After the import is finished, LaunchBox needs to save all the changes to its database. For very large imports (100+ platforms), this can take several minutes. The UI may appear to hang during this time—this is normal. Please be patient and let it complete the save.

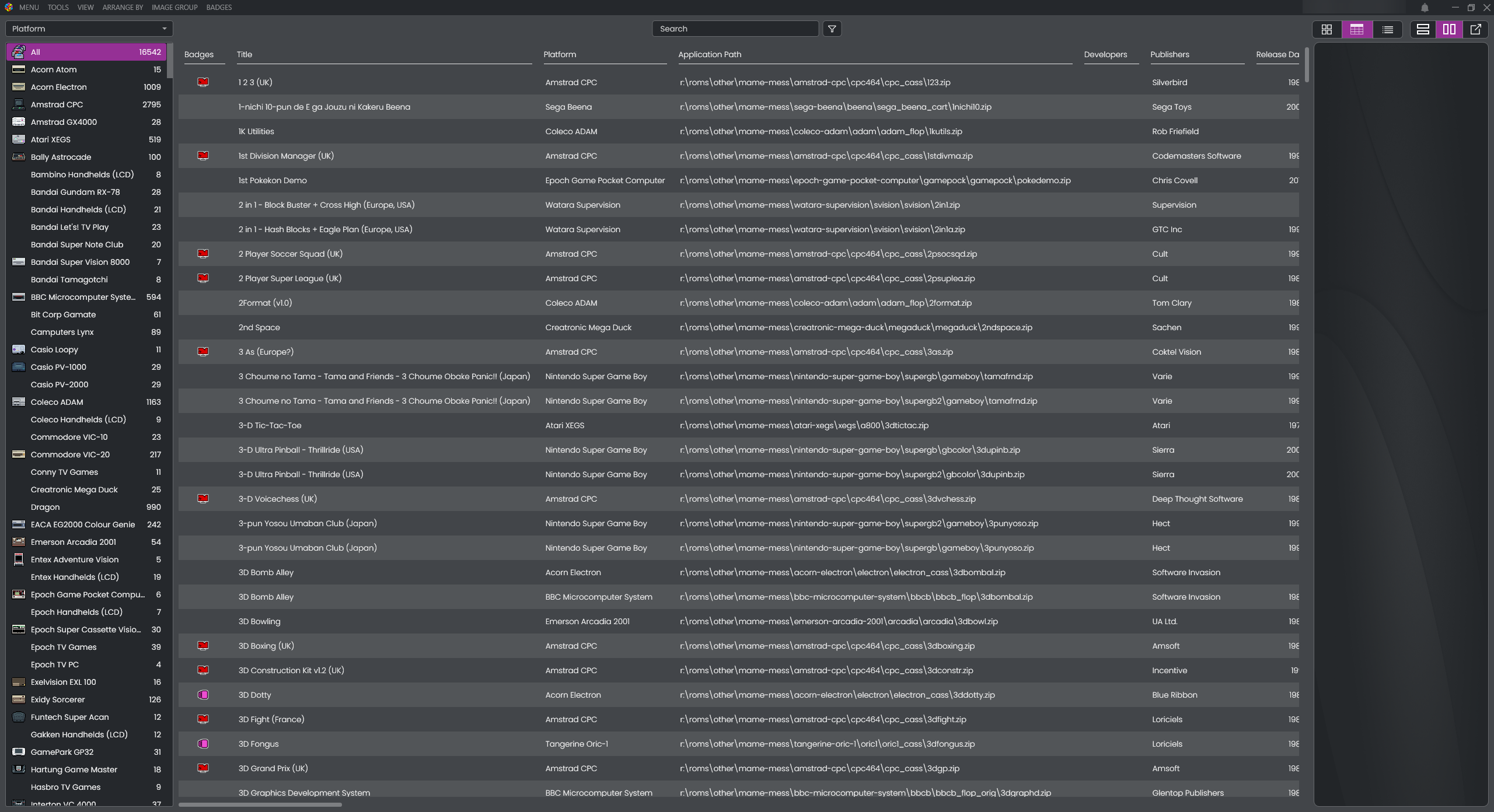

Just for reference, this is what a fresh Launchbox collections will looked like after importing all 106 platforms for MAME 0.278 ROMset, using my preset 0.278 system-softlist YAML file.
FAQ
Q: Why create per-game custom command lines instead of using a universal LUA script?
A: Simplicity and reliability. This method ensures that every game has a self-contained, correct launch command without relying on external scripts that can sometimes fail or require complex setup. It's the most straightforward way to guarantee playability out of the box.
For advanced users who want to automate complex sequences (like loading from a tape, entering commands, etc.), MAME's autoboot_script feature is the ideal solution. You can find excellent examples of such scripts at RandoMame's autoboot_script repository.
As a matter of fact, I'm also working on a separate project to provide these autoboot scripts. Stay tuned!
Future Work
Automatically assign newly added Platform to the Platform Categories from system-softlist YAML file
Even though the system-softlist YAML file already defined various Platform Categories for the Platforms, I couldn't find any reference in the Launchbox Plugin API that mention how to assign multiple Platform Categories for a Platform. So for now you have to add them manually.
Disclaimer
This tool modifies your LaunchBox database (LaunchBox.xml and other files). Please back up your LaunchBox Data folder before running a large import for the first time. The author is not responsible for any data loss. Use at your own risk.
