Runamukk Posted March 26, 2022 Share Posted March 26, 2022 Can anyone tell me how to enable hlsl shaders in mame 241? I cant figure it out. I looked for a master mame ini file but it seems it is broken into multiple files inside ini\presets there seem to be like 7 or so ini files like raster, vector, vector-mono, lcd, lcd-matrix GBA, gameboy. The only 2 that seem to mention hlsl are the 2 vector ones. I want to basically launch mame hit this button "~" and play with the different parameters until I get it how I want then change my configs in the ini file. I dont even know which one to to change or what to change initially to get the different setting to pop up in game. It looks really blocky right now and I want it to look smoother like an old school nice crt...I'm open to other shaders if there is a better option fyi. Thanks in advance. Quote Link to comment Share on other sites More sharing options...
sundogak Posted March 26, 2022 Share Posted March 26, 2022 (edited) 40 minutes ago, Runamukk said: Can anyone tell me how to enable hlsl shaders in mame 241? I cant figure it out. I looked for a master mame ini file but it seems it is broken into multiple files inside ini\presets there seem to be like 7 or so ini files like raster, vector, vector-mono, lcd, lcd-matrix GBA, gameboy. The only 2 that seem to mention hlsl are the 2 vector ones. I want to basically launch mame hit this button "~" and play with the different parameters until I get it how I want then change my configs in the ini file. I dont even know which one to to change or what to change initially to get the different setting to pop up in game. It looks really blocky right now and I want it to look smoother like an old school nice crt...I'm open to other shaders if there is a better option fyi. Thanks in advance. HLSL is controlled (primarily) via your MAME.ini file around line 363. # # DIRECT3D POST-PROCESSING OPTIONS # hlslpath hlsl hlsl_enable 1 hlsl_oversampling 1 hlsl_write auto hlsl_snap_width 640 hlsl_snap_height 480 shadow_mask_tile_mode 0 shadow_mask_alpha 0.1 shadow_mask_texture shadow-mask.png shadow_mask_x_count 12 shadow_mask_y_count 6 shadow_mask_usize 0.5 shadow_mask_vsize 0.5 shadow_mask_uoffset 0.0 shadow_mask_voffset 0.0 distortion 0.0 cubic_distortion 0.10 distort_corner 0.0 OpenGL shaders are around 298. # # OpenGL-SPECIFIC OPTIONS # gl_forcepow2texture 0 gl_notexturerect 0 gl_vbo 1 gl_pbo 1 gl_glsl 0 gl_glsl_filter 1 glsl_shader_mame0 glsl\crt-easymode-halation\linear glsl_shader_mame1 glsl\crt-easymode-halation\blurx glsl_shader_mame2 glsl\crt-easymode-halation\blury glsl_shader_mame3 glsl\crt-easymode-halation\thresh glsl_shader_mame4 glsl\crt-easymode-halation\easyh glsl_shader_mame5 none The other files you mentioned such as raster.ini and vector.ini can be used to load custom settings only for those particular system types. They take priority/override what is in your MAME.INI if they are located in your INI folder. If you wanted special settings that only apply to raster games, you can have those included in the raster.ini file (you only need to put the deltas from the MAME.ini). Correspondingly, an INI named after the game will take priority for settings over the MAME.ini (qbert.ini as example). The MAME docs go into more gory detail on ini order priority here Edited March 26, 2022 by sundogak Added MAME link Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 26, 2022 Author Share Posted March 26, 2022 (edited) Thank you but where is the mame.ini file? I looked through the mame root folder and the other folders within root and can't find it. Is it somewhere else or do I have to create it somehow after downloading a fresh version of mame.241? Fyi I used the launchbox full set importer to download and configure mame241. Edited March 26, 2022 by Runamukk Quote Link to comment Share on other sites More sharing options...
Retro808 Posted March 26, 2022 Share Posted March 26, 2022 You have to create it. You can do so buy command line or by simply running the mame.exe without a game. Click on "Configure. Options" then click "Save Configuration". Once you exit Mame the ini will be in your Mame root folder. Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 26, 2022 Author Share Posted March 26, 2022 Awesome....thanks Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 26, 2022 Author Share Posted March 26, 2022 One last thing.. I want to download the most current no nag file for mame. Where do I put that? Quote Link to comment Share on other sites More sharing options...
Retro808 Posted March 26, 2022 Share Posted March 26, 2022 1 minute ago, Runamukk said: One last thing.. I want to download the most current no nag file for mame. Where do I put that? Put what? The new no nag exe replaces to original one in the root folder. Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 27, 2022 Author Share Posted March 27, 2022 (edited) Thank you all very much. I've got the ini file, have d3d enabled, set hlsl to 1, set hlsl oversampling to 1and it still looks the same and when I push the squiggly button to pull up the different settings it's just monitor and audio stuff with no hlsl options. What am I missing? I've cycled back and forth with control/alt/f5 and nothing changes...still looking blocky. Here's my ini file. Is there anything else I need to change within it or somewhere else? FYI my monitor is only 720p if that makes a difference. Thanks again in advance. Edited March 27, 2022 by Runamukk Quote Link to comment Share on other sites More sharing options...
Lordmonkus Posted March 27, 2022 Share Posted March 27, 2022 All you need is to enable hlsl and that is it. What sort of graphics card do you have ? Yours may not work with it. Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 27, 2022 Author Share Posted March 27, 2022 Its an older alienware mx17 r4 with an amd 7970. Its pretty stout for what it is and runs crysis...lol. Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 27, 2022 Author Share Posted March 27, 2022 (edited) Ive gotta be missing something....I would totally think it could handle this. Retroarch glsl shaders are no problem at all. Edited March 27, 2022 by Runamukk Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 27, 2022 Author Share Posted March 27, 2022 (edited) I just noticed it works in mame directly but not when I launch the game through launchbox to open the game with mame. Also, in neither scenario does pushing ~ bring up the different hlsl options to adjust the various settings. My mame forlder is in the launchbox\emulators\mame.241 that was imported using the romset importer auto download mame tool. Edited March 27, 2022 by Runamukk Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 27, 2022 Author Share Posted March 27, 2022 Got it working mostly....I uninstalled mame completely and reinstalled it with a direct download instead of going through the full romset downloader which downloaded mame for me. I set the pathway in Launchbox for the emulator and the roms, with both being located within the emulators folder. I turned on hlsl and it all works. It appears the launchbox mame downloader is the culprit with all my woes and somehow corrupted mame when it downloaded. I still cannot access the slider controls via "~" that adust hlsl settings in real time and if anyone knows why Im happy to get a solution but thats a mame thing so I'm going to a mame forum. It seems like I had 2 separate issues...Launchbox downloading a gimped version of mame.241 and mame not bringing up hlsl settings through the slider settings. Thanks to all and if Launchbox or anyone else with the same issue is out there I hope this helps. Quote Link to comment Share on other sites More sharing options...
Lordmonkus Posted March 27, 2022 Share Posted March 27, 2022 Launchbox downloads the same Mame you get from the official site, it is not gimped in any way. The HLSL sliders from the ~ menu have to be cycled through to get to each setting and they are temporary, they go away after you shut down Mame. You need to edit the raster or vector ini files to make the settings permanent. Quote Link to comment Share on other sites More sharing options...

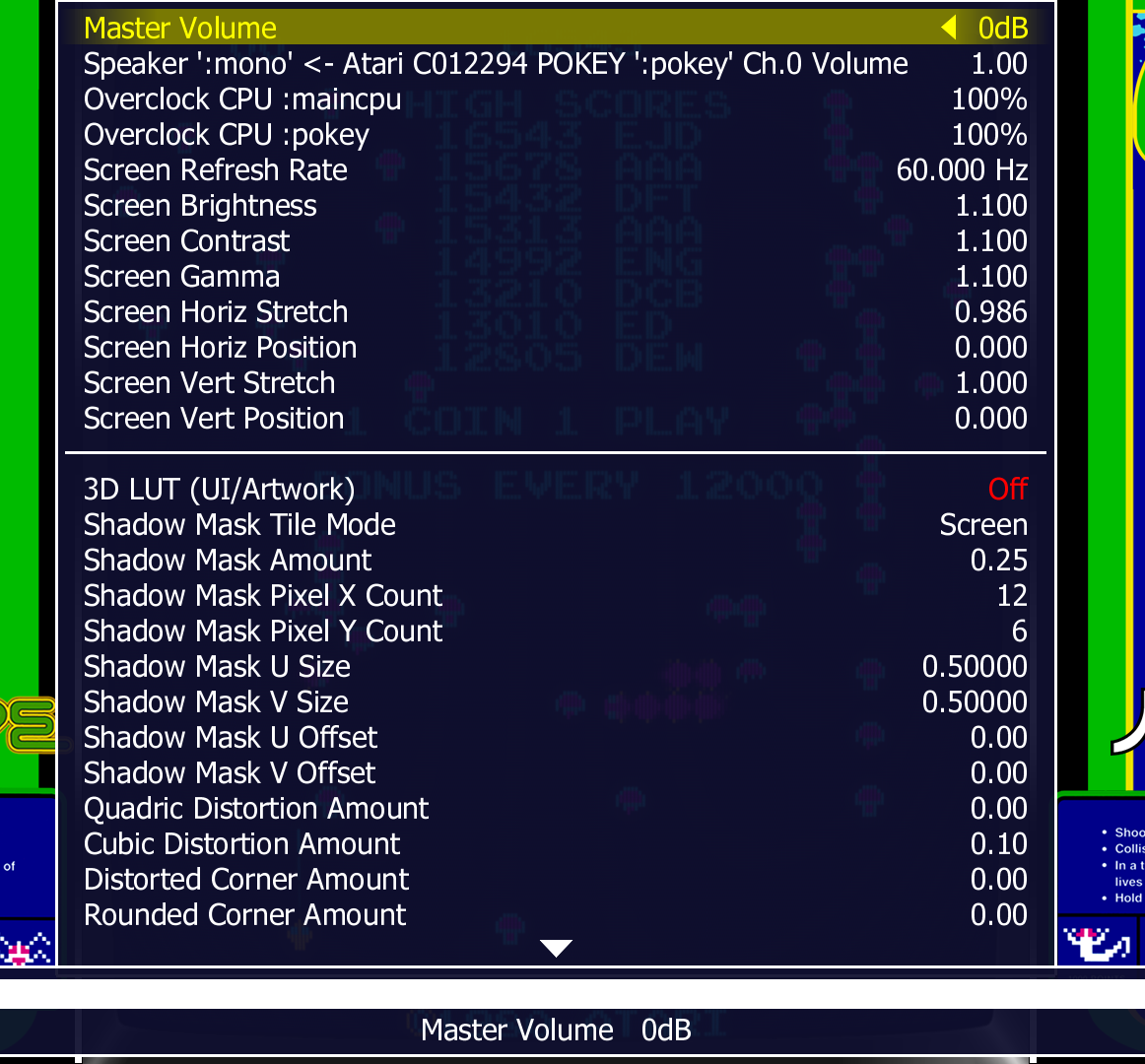

Runamukk Posted March 27, 2022 Author Share Posted March 27, 2022 The issue I'm having is that when I open a game in mame and push ~ to cycle up or down through the slider settings it's only about 10 settings like brightness, gamma, speaker etc....none of the hlsl specific settings are there...and I have hlsl enabled. Quote Link to comment Share on other sites More sharing options...

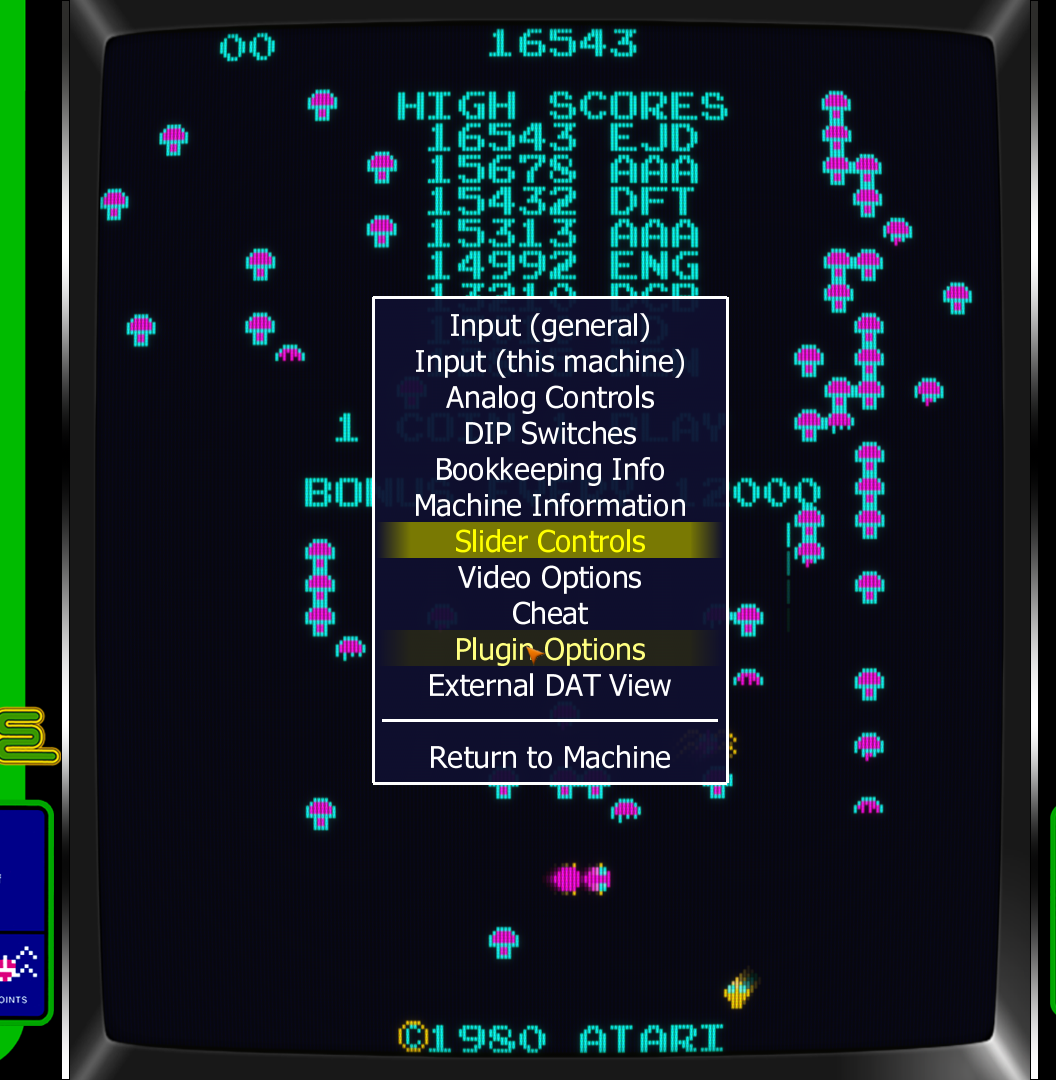

sundogak Posted March 27, 2022 Share Posted March 27, 2022 (edited) 22 minutes ago, Runamukk said: The issue I'm having is that when I open a game in mame and push ~ to cycle up or down through the slider settings it's only about 10 settings like brightness, gamma, speaker etc....none of the hlsl specific settings are there...and I have hlsl enabled. They are under Slider Controls - Tab Key by default Edited March 27, 2022 by sundogak Quote Link to comment Share on other sites More sharing options...
Runamukk Posted March 27, 2022 Author Share Posted March 27, 2022 Dude your awesome...thank you...thats what I was looking for. Quote Link to comment Share on other sites More sharing options...
