How do I setup the CHD folders for MAME?


strich

Recommended Posts

I've read the 3+ threads in here on setting up MAME but they either don't explain it in a way that makes sense to me or seem wrong/outdated. I have the latest 0.261 merged ROM and CHD sets in their own folders as that makes updating them easy. It's not clear to me how I can configure MAME to search the CHD folder for missing files whenever a game that needs CHDs is required?

Link to comment
Share on other sites

First you need to create your mame.ini file by typing "mame -cc" in your MAME folder.  Then modify the rompath line as follows to include the location of your CHD files.

#
# CORE SEARCH PATH OPTIONS
#
homepath                  .
rompath                   roms;C:\MAME ROMs\MAME 0.261 ROMs (non-merged);C:\MAME CHDs\MAME 0.261 CHDs (merged)



Just adjust things to match your folder structure and location.  My roms are at C:\MAME ROMs\MAME 0.261 ROMs (non-merged) and my CHDs are at C:\MAME CHDs\MAME 0.261 CHDs (merged).  Remember to include the semicolons.  Once you are finished MAME will run the CHD games without hesitation.  Take care.

  • Like 2
Link to comment
Share on other sites

Alternately, (just to give more options and possibly confuse matters worse ;)) rather than messing with mame.ini (whether it exists or not) you can place the CHD folder(s) in the same location as the ROMs.

D:\LaunchBox\Games\Arcade\gauntleg.zip
D:\LaunchBox\Games\Arcade\gauntleg\gauntleg.chd

Then edit your MAME emulator (in LaunchBox) and in the Default Command-Line Parameters, add

-rompath %romlocation%




Caveats:

  1. This won't work if you like to keep your CHD set in its own folder.  i.e.   D:\LaunchBox\Games\Arcade\CHDs\gauntleg\
  2. This will only work if in your games Launching section, the ROM File [path] is the full (or relative) path to the main ROM (gauntleg.zip) for the CHD
    • Which, by default it should be.  i.e.  "Games\Arcade\gauntleg.zip"  or  "D:\LaunchBox\Games\Arcade\gauntleg.zip"
Link to comment
Share on other sites

  • 3 months later...
On 12/30/2023 at 9:00 AM, B-17 Bomber said:

First you need to create your mame.ini file by typing "mame -cc" in your MAME folder.  Then modify the rompath line as follows to include the location of your CHD files.

#
# CORE SEARCH PATH OPTIONS
#
homepath                  .
rompath                   roms;C:\MAME ROMs\MAME 0.261 ROMs (non-merged);C:\MAME CHDs\MAME 0.261 CHDs (merged)



Just adjust things to match your folder structure and location.  My roms are at C:\MAME ROMs\MAME 0.261 ROMs (non-merged) and my CHDs are at C:\MAME CHDs\MAME 0.261 CHDs (merged).  Remember to include the semicolons.  Once you are finished MAME will run the CHD games without hesitation.  Take care.

This helped me kind sir :)

I ran it without in command line parameters

-rompath %romlocation%
Link to comment
Share on other sites

  • 1 month later...

I am not able to get my CHDs to work.

I have always ran my own installation of Mame, and CHDs have always worked, but figured i would try LB's auto setup of Mame and now CHDs dont work.

i keep my roms and CHDs separate. I added the rom and chd folders by opening mame in LB's Mame folder and adding through the gui. Everything works fine in Mame, but when i try running from LB, it doesn't do anything. I then copied sf3 folder from my chd folder into the rom folder and it worked from LB.

My paths are in the mame.ini

#
# CORE SEARCH PATH OPTIONS
#
homepath                  .
rompath                   "roms;M:\Mame\MAME Roms;M:\Mame\MAME CHDs"
hashpath                  hash
samplepath                samples;M:\Mame\Extras\samples
artpath                   artwork
ctrlrpath                 ctrlr



Not sure why setting up my own version of Mame works, but the auto version of Mame doesnt.

Link to comment
Share on other sites

1 hour ago, maabus said:

Not sure why setting up my own version of Mame works, but the auto version of Mame doesnt.

In LaunchBox, edit the MAME emulator LaunchBox setup for you.  Since you've added the paths to rompath in MAME itself, in the default command-line parameters, remove   -rompath %romlocation%

Link to comment
Share on other sites

1 hour ago, JoeViking245 said:

In LaunchBox, edit the MAME emulator LaunchBox setup for you.  Since you've added the paths to rompath in MAME itself, in the default command-line parameters, remove   -rompath %romlocation%

Thanks Joe! You rock!!!!

  • Game On 1
Link to comment
Share on other sites

  • 2 months later...

Well I tried the mame -cc command and it does not create the ini file. Is there something I do wrong_ I use mame 268 (the latest one)

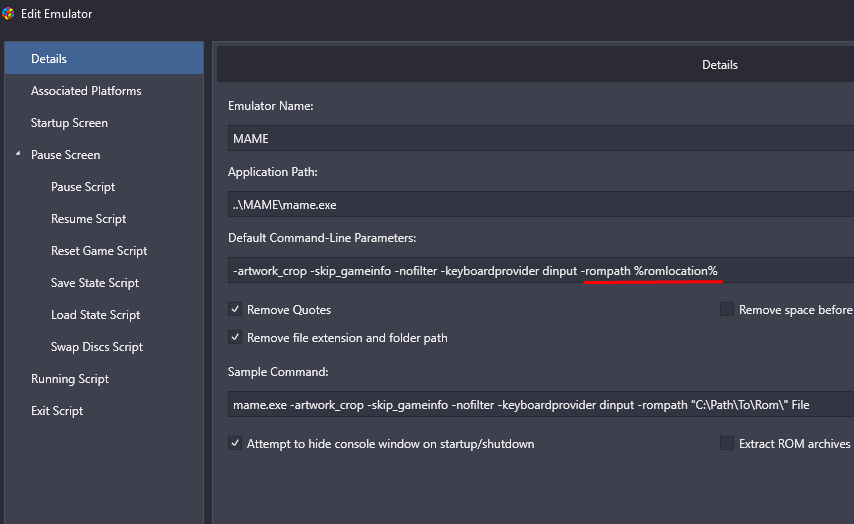

Also where is the folder option from the picture shown here. That could maybe the solution to my problem.

Edited by Drake008
Link to comment
Share on other sites

1 hour ago, Drake008 said:

Well I tried the mame -cc command and it does not create the ini file. Is there something I do wrong_ I use mame 268 (the latest one)

Running that command from the Windows Command Prompt from within the folder that contains mame.exe should create mame.ini.  Then when you close the Command Prompt window and are back in Windows Explorer, the file should be right 'next' to mame.exe.  If you don't have file extensions showing, the file type you're looking for is Configuration settings.




Link to comment
Share on other sites

I have it now. Just wgen U put the folders in it the programm does not open for example Killer Instinct 2 The paths look like so



homepath                  .
rompath                   "e:\MAME\MAME 0.268 ROMs (split)\";"e:\MAME\MAME 0.268 CHDs (merged)\"



Must I do something else or isa the paths folder too long?


Maybe that thing in the picture shown? But I do not find this option to show that specific window.

Edited by Drake008
Link to comment
Share on other sites

6 hours ago, Drake008 said:

rompath                   "e:\MAME\MAME 0.268 ROMs (split)\";"e:\MAME\MAME 0.268 CHDs (merged)\"



Must I do something else or isa the paths folder too long?

Don't put trailing slashes on the paths and don't "quote" "each" "path".  Only "quote the whole thing".

rompath       "e:\MAME\MAME 0.268 ROMs (split);e:\MAME\MAME 0.268 CHDs (merged)"



Link to comment
Share on other sites
