Bezels cause Vertical games to stretch.

[Kleigkarath]

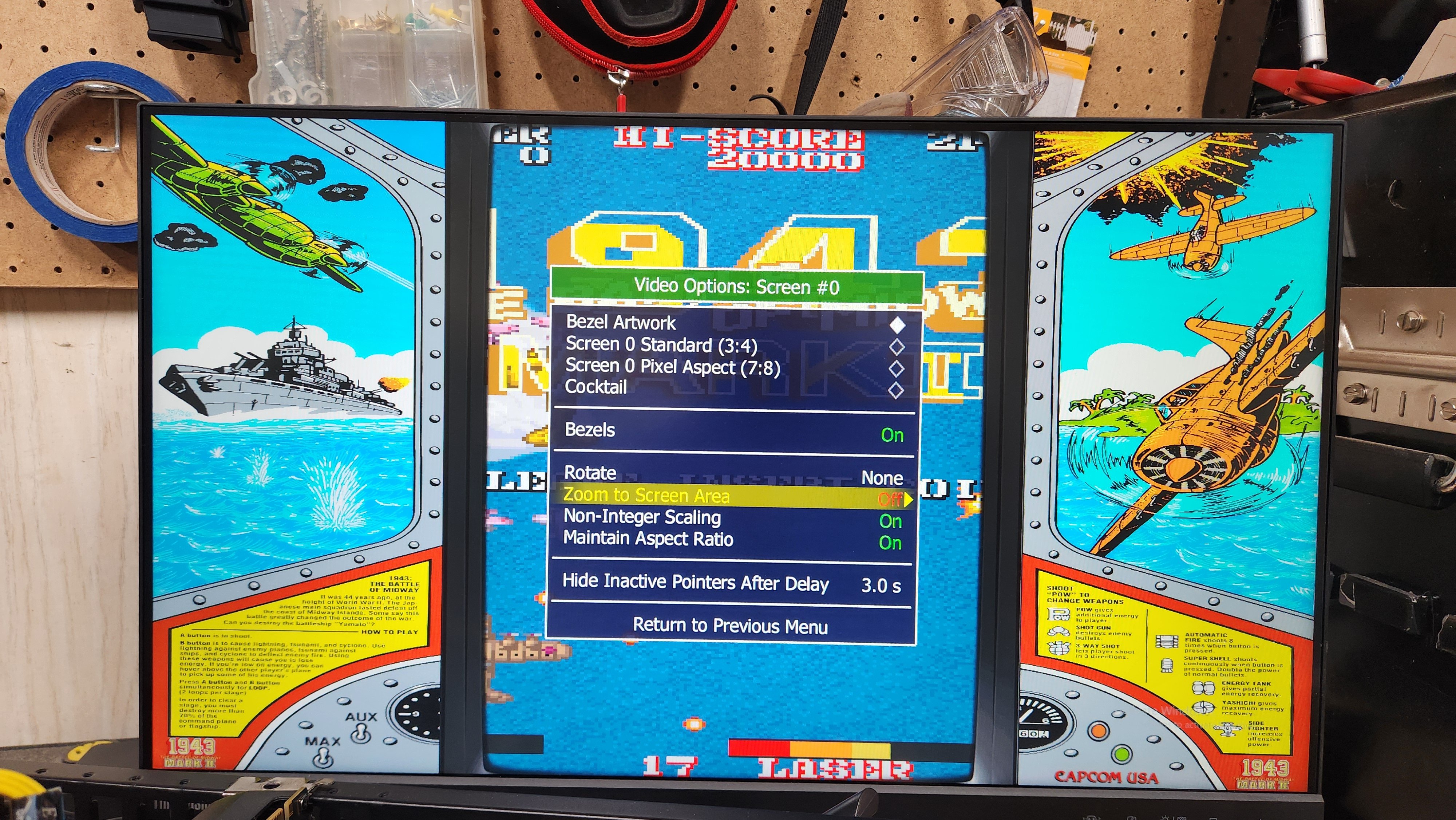

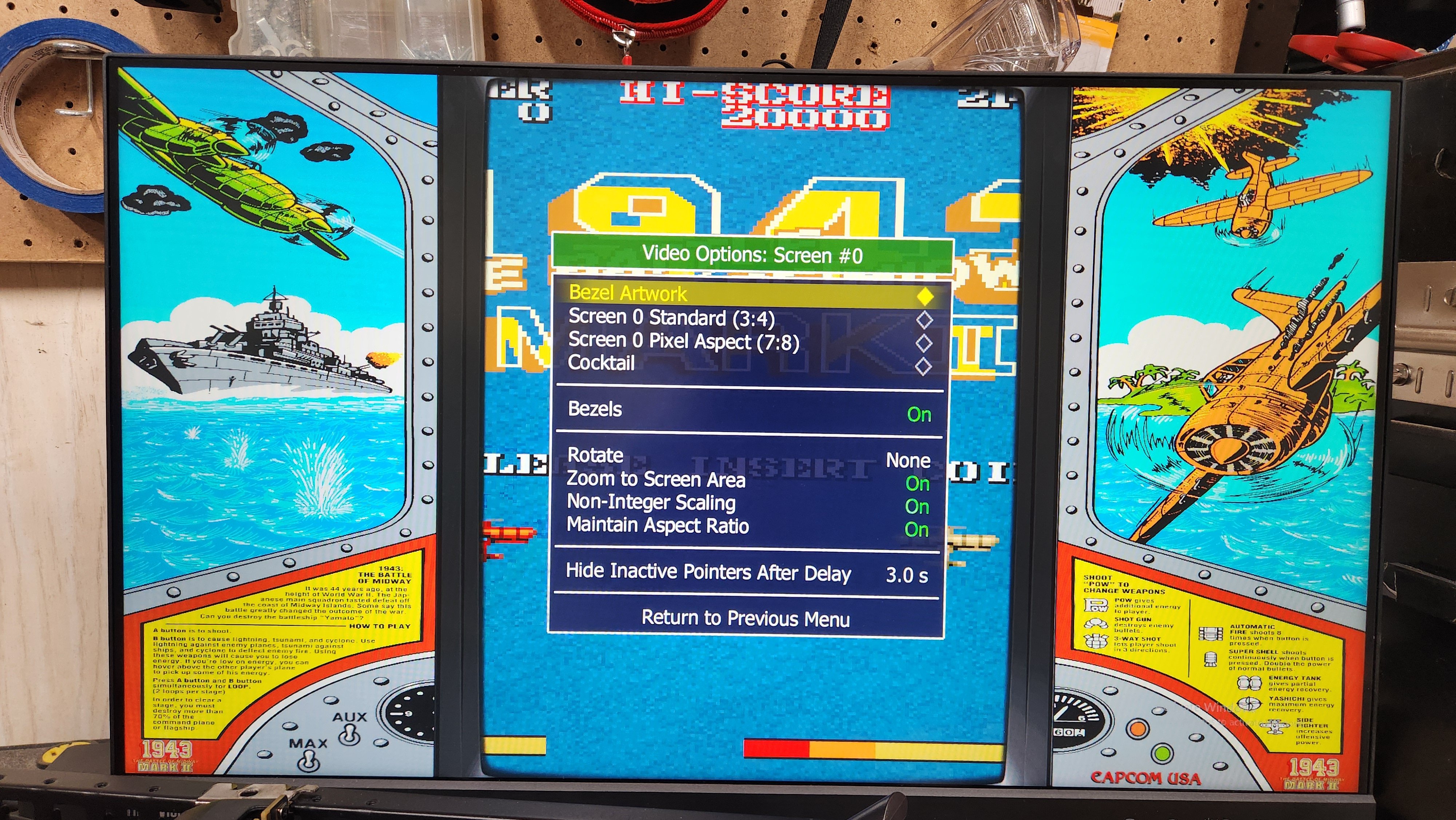

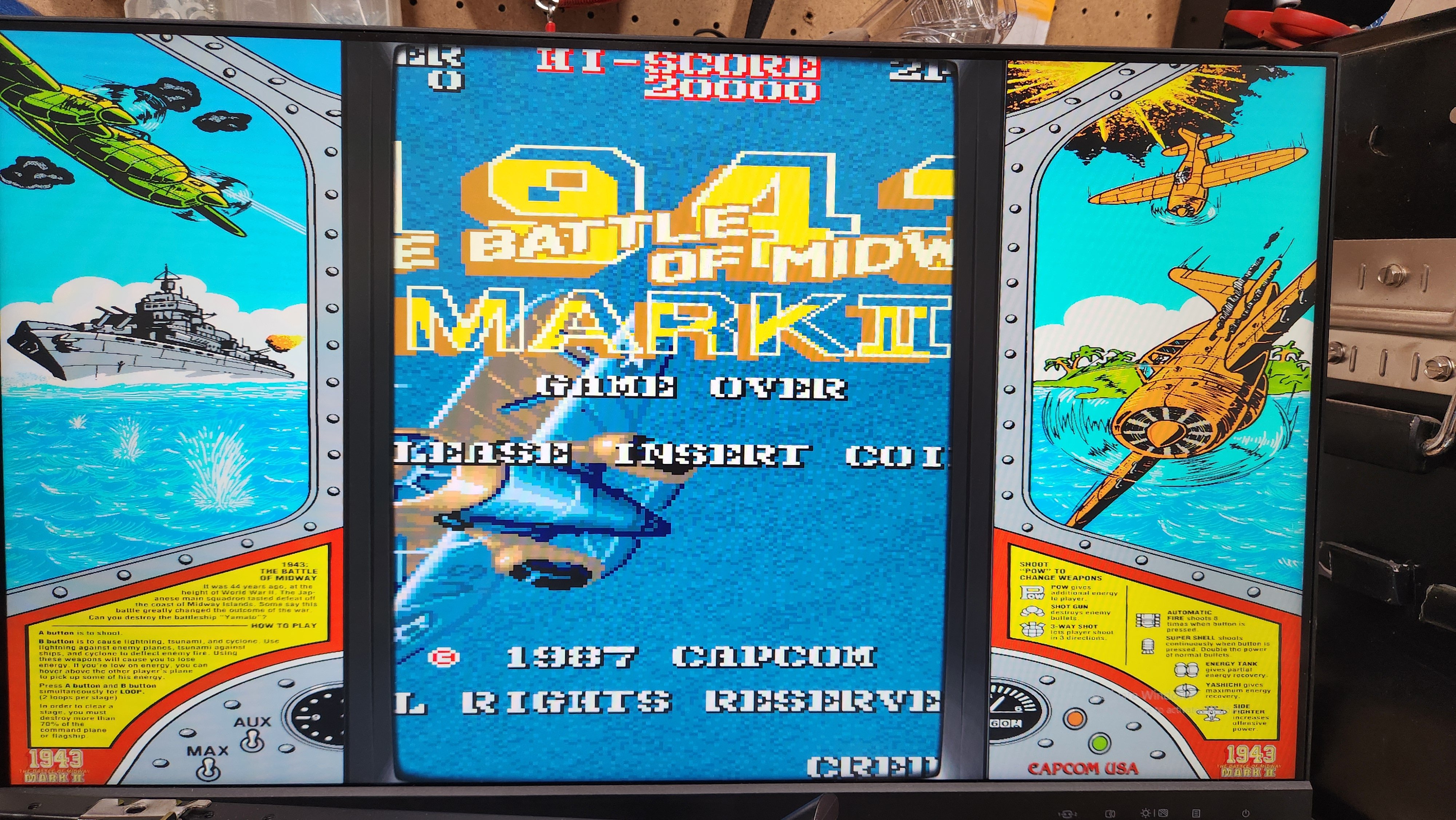

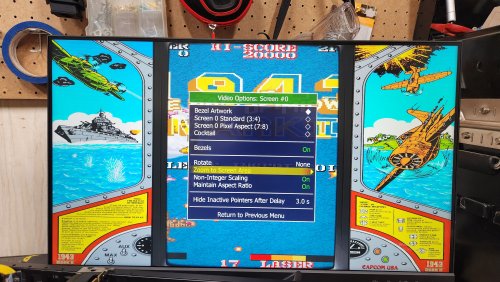

So I just recently started from scratch with Mame.  Brand new set all the CHD's and followed the full set installer.  All installed well and played well.  I then added the bezels through the media interface.  It downloaded and installed the bezels.  When I go to play the vertical games they are stretched.  If I go to the video options and turn of scaling it is still stretched.  If I remove the bezels it is back to normal ratio.  Also I used to have overlays for glass and and scratches but those seem to be missing.

[Kleigkarath]

I apologize if this is more an emulation topic but it only occurred after Launchbox installed the bezels and the bezel project.  So  didn't know where the disconnect lay.

[dragon57]

Here is how mine is setup.

[Kleigkarath]

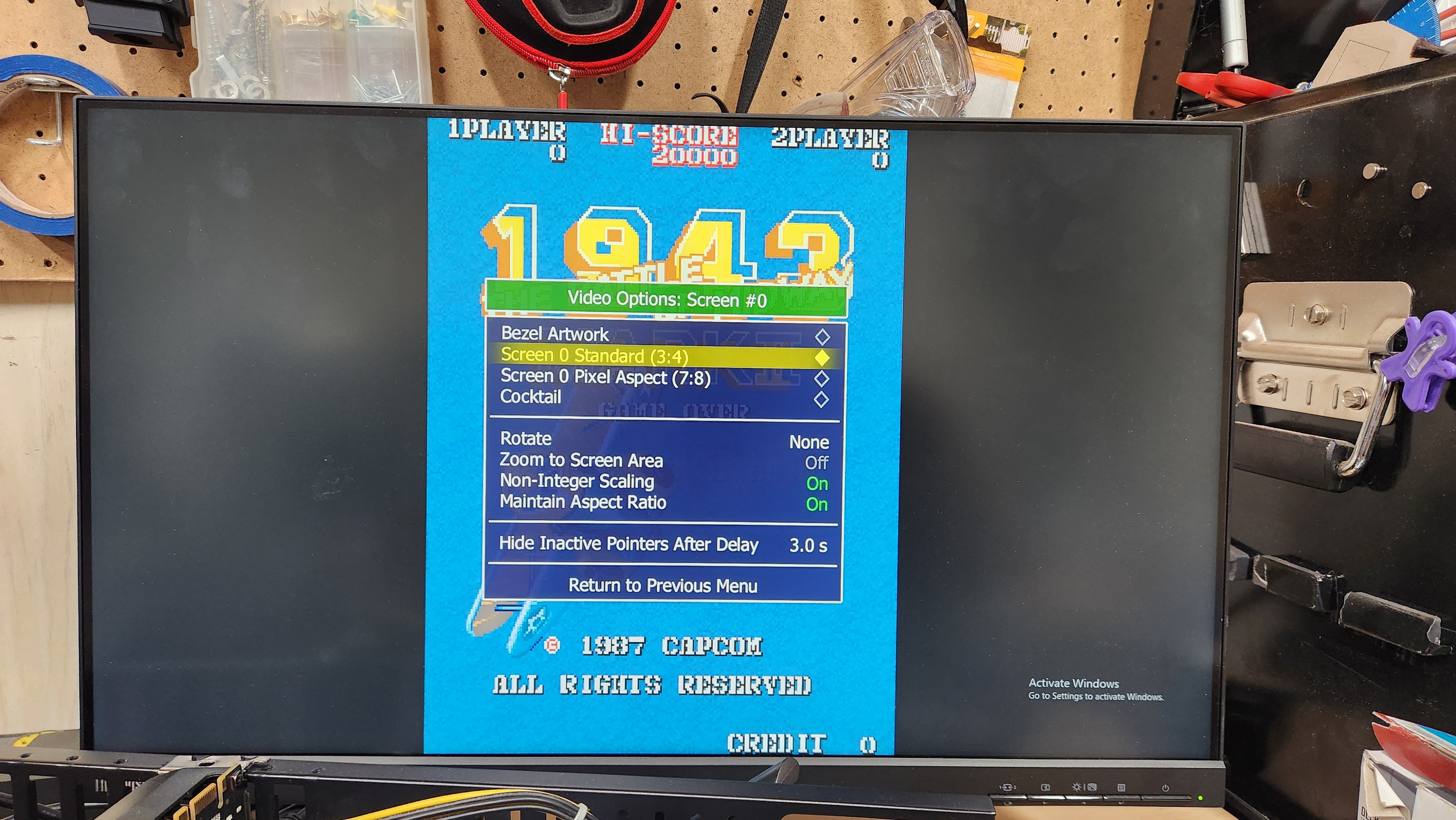

I have tried that setting. There was no change. More odd than that is if the game uses the fall back artwork. The aspect ratio is correct.

[spycat]

That's an odd one. Going on the pictures it might be worth opening the game's lay to see if the screen bounds are for a vertical game area and not a horizontal one.

[Kleigkarath]

This is the lay file for the Artwork in 1943mii.

<mamelayout version="2">
  <element name="bezel">
    <image file="bezel.png" />
  </element>
  <view name="Bezel Artwork">
    <bezel element="bezel">
      <bounds left="0" top="0" right="16" bottom="9" />
    </bezel>
    <screen index="0">
      <bounds left="2" top="0" right="14" bottom="9" />
    </screen>
  </view>
</mamelayout>

[spycat]

I'm not too familiar with the left, top, right, bottom way of doing bounds, I use x, y, width, height values.
But your screen bounds left="2" and right="14" would seem to be for a horizontal (4:3) game.
For a vertical (3:4) game try left="4.5" and right="11.5" and see how you go from there.

[dragon57]

Note: the MAME bezels were just updated a couple of weeks ago. Depending on the age of your files, you may want to reinstall them.

Here is my lay file:
<!-- bezel.lay -->
<mamelayout version="2">
<element name="bezel">
<image file="bezel.png" />
</element>
<view name="Bezel Artwork">
<element ref="bezel">
<bounds left="0" top="0" right="16" bottom="9" />
</element>
<screen index="0">
<bounds left="4.625" top="0" right="11.375" bottom="9" />
</screen>
</view>
</mamelayout>

Edited Sunday at 12:36 AM by dragon57

[Kleigkarath]

That did work!  Now the next question is that the .lay file is located in each of the artwork folders.  Is there a mass way to change that or am I stuck one by one?



[dragon57]

Have you updated your bezels for MAME very recently? The new ones we just pushed to Github should have correct lay files for all the vertical games.

[Kleigkarath]

I did the install through launchbox, not the Github.  But I can look over there and see if I can update through that.



Edited Sunday at 11:58 PM by Kleigkarath

[dragon57]

27 minutes ago, Kleigkarath said:

I did the install through launchbox, not the Github.  But I can look over there and see if I can update through that.



LaunchBox pulls from the same Github, so updating with LB should be fine.
