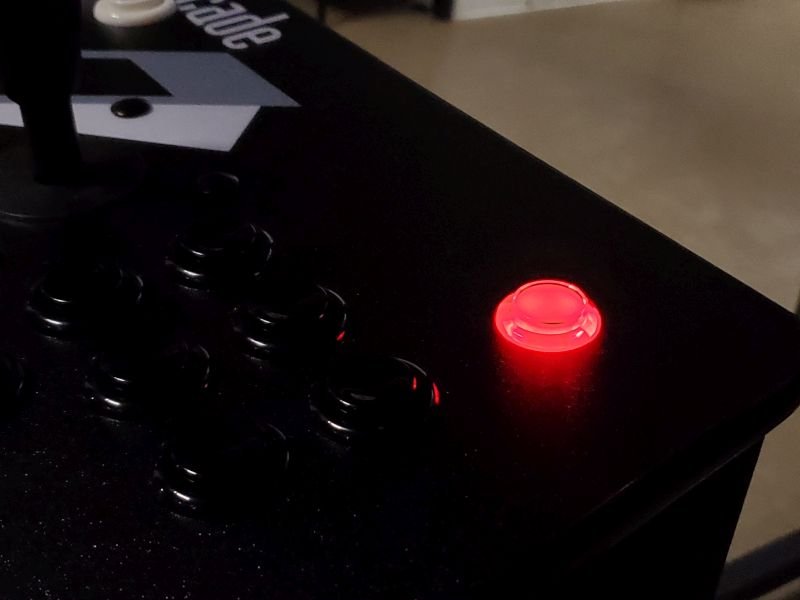

antisoshal Posted December 9, 2019 Share Posted December 9, 2019 I have a MAME setup using the X-Arcade Tankstick in BigBox. Everything works except the ability to exit games. The red light up button on the tankstick is supposed to do this but it doesnt and I cant figure out how to map it in any of the various ways to do controller/keyboard mapping. Anyone have any ideas? Quote Link to comment Share on other sites More sharing options...
Lordmonkus Posted December 9, 2019 Share Posted December 9, 2019 3 minutes ago, antisoshal said: The red light up button on the tankstick What button are you referring to ? There is no red light up button, just an actual red light indicating it is getting power. Anyways, what you should do is in Mame itself set an exit emulator combo in the controller bindings screen. Quote Link to comment Share on other sites More sharing options...
neil9000 Posted December 9, 2019 Share Posted December 9, 2019 You want "UI Cancel" in MAME. Quote Link to comment Share on other sites More sharing options...
antisoshal Posted December 9, 2019 Author Share Posted December 9, 2019 25 minutes ago, Lordmonkus said: What button are you referring to ? There is no red light up button, just an actual red light indicating it is getting power. Anyways, what you should do is in Mame itself set an exit emulator combo in the controller bindings screen. Mine is a button and X-Arcade says it should work as the exit game button but it doesnt and they havent been too helpful Quote Link to comment Share on other sites More sharing options...
antisoshal Posted December 9, 2019 Author Share Posted December 9, 2019 25 minutes ago, neil9000 said: You want "UI Cancel" in MAME. Okay, but I have no idea how to accomplish that. Im fairly computer savvy but just started messing with MAME. Im using MAMEUI64 version .188 as the emulator in manage emulators, and I have the X-Arcade controller loaded in MameUI64 Quote Link to comment Share on other sites More sharing options...
Lordmonkus Posted December 9, 2019 Share Posted December 9, 2019 3 minutes ago, antisoshal said: Mine is a button and X-Arcade says it should work as the exit game button but it doesnt and they havent been too helpful Do you have a picture of it ? Because there isn't one on any from their website and my TankStick doesn't have one. 1 minute ago, antisoshal said: Okay, but I have no idea how to accomplish that. Im fairly computer savvy but just started messing with MAME. Im using MAMEUI64 version .188 as the emulator in manage emulators, and I have the X-Arcade controller loaded in MameUI64 If you press Tab on the keyboard it brings up a menu where you can change certain settings and map controls. Quote Link to comment Share on other sites More sharing options...
antisoshal Posted December 10, 2019 Author Share Posted December 10, 2019 Tab when I am in what app? MameUI64? Launchbox? BigBox? Or when Im in the game itself? Quote Link to comment Share on other sites More sharing options...
Lordmonkus Posted December 10, 2019 Share Posted December 10, 2019 Did you buy that from X-Arcade like that or 2nd hand ? The Tab menu is in Mame itself, though im not sure about MameUI64, I only use the standard Mame. Quote Link to comment Share on other sites More sharing options...
antisoshal Posted December 10, 2019 Author Share Posted December 10, 2019 6 minutes ago, Lordmonkus said: Did you buy that from X-Arcade like that or 2nd hand ? The Tab menu is in Mame itself, though im not sure about MameUI64, I only use the standard Mame. Straight from them last month. The button is in their documentation as the exit button, but I cant figure out how to make it work. If it matters, its the tankstick with trackball Quote Link to comment Share on other sites More sharing options...
antisoshal Posted December 10, 2019 Author Share Posted December 10, 2019 7 minutes ago, Lordmonkus said: Did you buy that from X-Arcade like that or 2nd hand ? The Tab menu is in Mame itself, though im not sure about MameUI64, I only use the standard Mame. Since Mame itself doesnt run unless you pick a game, Im assuming then you mean while it a game you can hit tab? Sorry but Im trying to figure out how to get to what you are describing Quote Link to comment Share on other sites More sharing options...

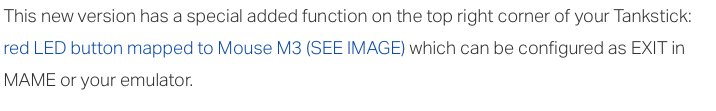

Retro808 Posted December 10, 2019 Share Posted December 10, 2019 7 minutes ago, antisoshal said: Since Mame itself doesnt run unless you pick a game, Im assuming then you mean while it a game you can hit tab? Sorry but Im trying to figure out how to get to what you are describing That button is mapped to Mouse 3 (M3). Xgaming only says that button can be used to exit. It is not already mapped. You have to do that yourself. Launch a game and hit tab or just open the Mame UI. In the options for Input General, go there and choose User Interface. Then map that button to UI Cancel. Quote Link to comment Share on other sites More sharing options...

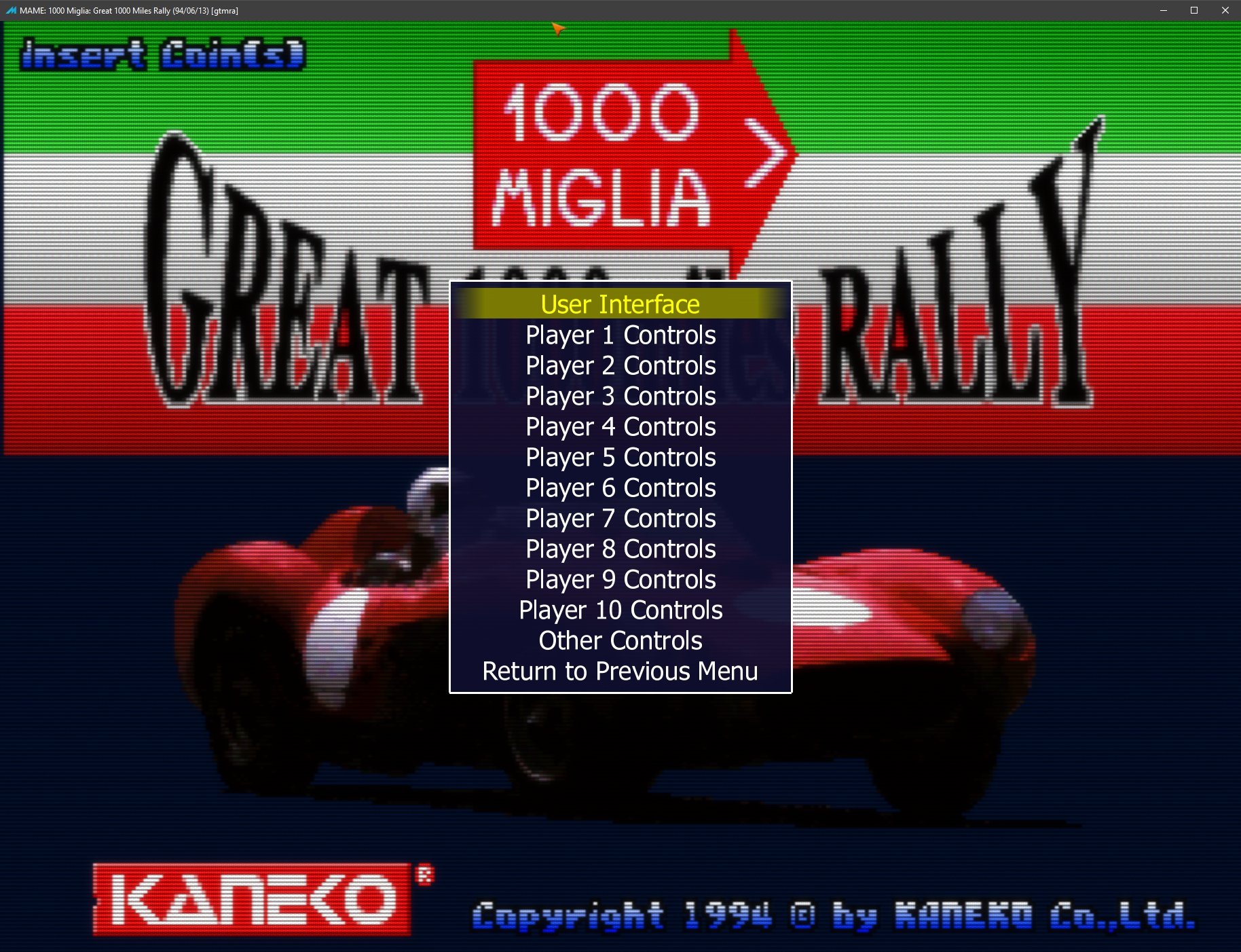

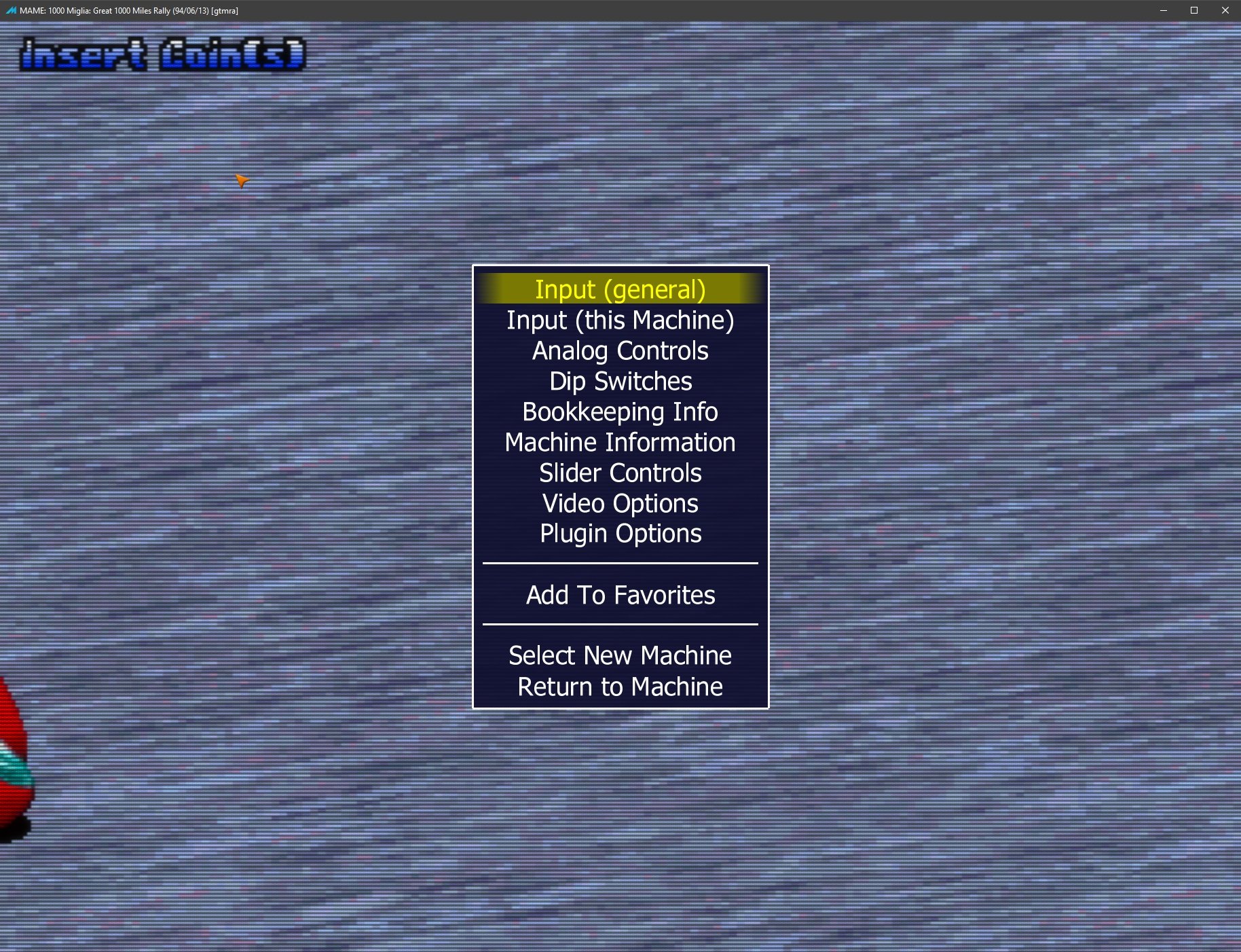

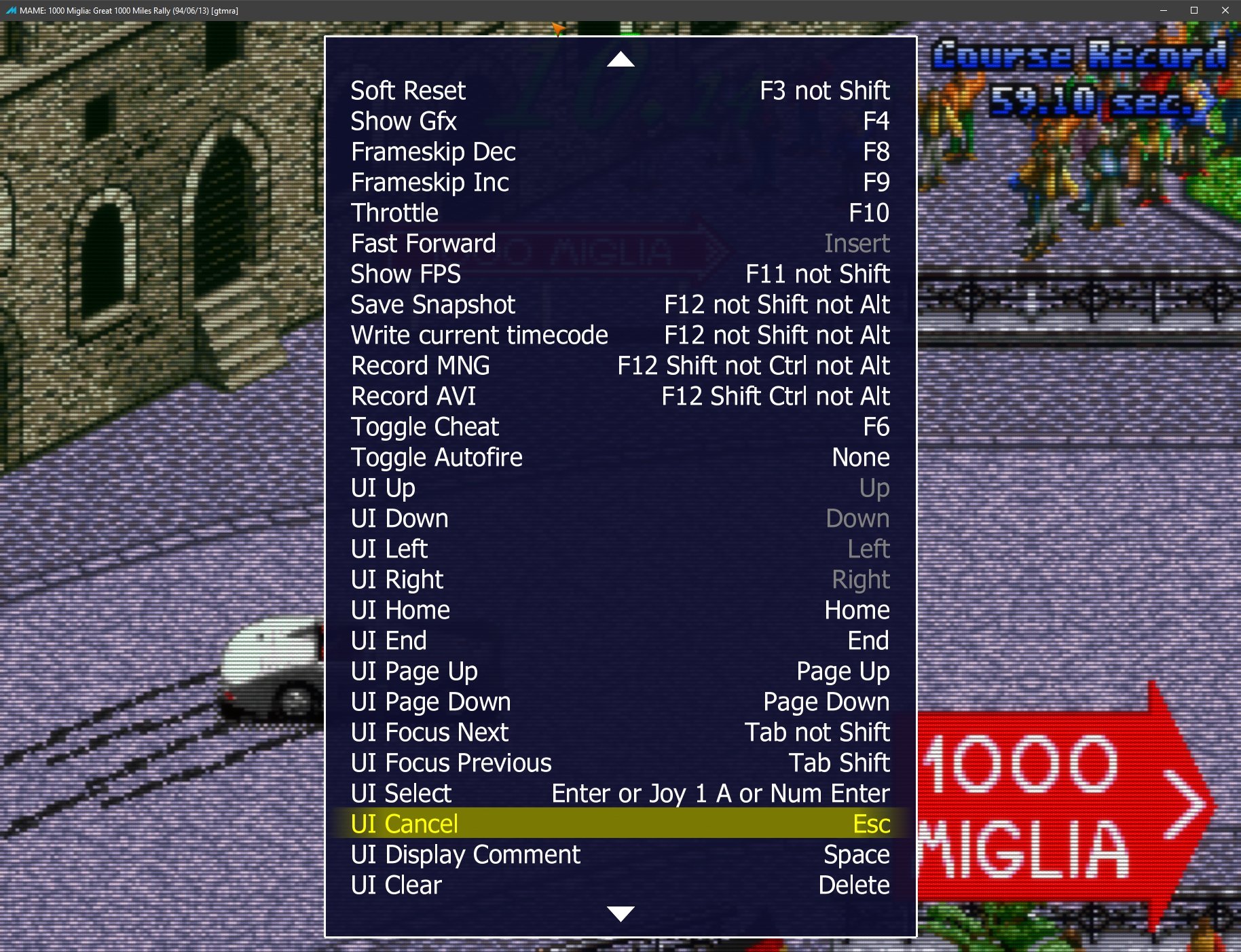

Lordmonkus Posted December 10, 2019 Share Posted December 10, 2019 3 minutes ago, antisoshal said: Straight from them last month. The button is in their documentation as the exit button, but I cant figure out how to make it work. If it matters, its the tankstick with trackball Ok, interesting, never saw it before and no mention of it on their site that I could see. 2 minutes ago, antisoshal said: Since Mame itself doesnt run unless you pick a game, Im assuming then you mean while it a game you can hit tab? Sorry but Im trying to figure out how to get to what you are describing Yeah while Mame is running with a game you can press Tab on your keyboard to bring up the menu. Here are some screenshots from mine but like I said I use the regular version of Mame, not the UI version. Quote Link to comment Share on other sites More sharing options...
antisoshal Posted December 10, 2019 Author Share Posted December 10, 2019 Thanks everyone. I got to the menu myself and found the UI Cancel but weirdly if you press that button it clears the value to none, so I cant make that button work. That said I made pressing 5C work so that will do for now. Quote Link to comment Share on other sites More sharing options...
lindenwood98 Posted December 10, 2019 Share Posted December 10, 2019 I downloaded the HOT KEY program from X-Arcade. And it works fine Quote Link to comment Share on other sites More sharing options...
def.red Posted August 27, 2020 Share Posted August 27, 2020 Super late reply, but I was reconfiguring stuff, couldn't remember how to get this working, then remembered the REAL answer: You have to enable Mouse in mame.ini. The red button is a Mouse Button 2 press and cannot be reprogrammed. So, open up mame.in, under inputs, find MOUSE and set it to 1 (default is 0). Vioala! Quote Link to comment Share on other sites More sharing options...
slickrickstyles Posted September 1, 2020 Share Posted September 1, 2020 Well that is handy...I have the Tankstick and it only has the red indicator light. I did recently have an issue with the buttons not working at all and they sent me an entirely new PCB free of charge so there is that...Glad you got it working. If you have issues in other emulators you can use AutoHotKey or directly in Launchbox itself and do something like Mbutton::Esc which will make that middle mouse button act as the esc key. Quote Link to comment Share on other sites More sharing options...
LAN_Shark Posted August 6, 2021 Share Posted August 6, 2021 (edited) On 12/9/2019 at 6:27 PM, neil9000 said: You want "UI Cancel" in MAME. This setting gets buggered up when I make software changes. The red lighted button on the X-Arcade is "mouse 2". So you need to go into mame... or when a mame game is running: "Tab", Select "input (general)","user interface" ... scroll down to "UI Cancel" , "enter", [RED Button]. I have yet to figure out a simple way to add buttons (keeping the defaults) and adding "mouse 2" You could also make or exit the file "MAME\cfg\defailt.cfg" default.cfg Edited October 5, 2021 by LAN_Shark More Info: Quote Link to comment Share on other sites More sharing options...
Btomek Posted July 31, 2022 Share Posted July 31, 2022 On 8/5/2021 at 8:33 PM, LAN_Shark said: This setting gets buggered up when I make software changes. The red lighted button on the X-Arcade is "mouse 2". So you need to go into mame... or when a mame game is running: "Tab", Select "input (general)","user interface" ... scroll down to "UI Cancel" , "enter", [RED Button]. I have yet to figure out a simple way to add buttons (keeping the defaults) and adding "mouse 2" You could also make or exit the file "MAME\cfg\defailt.cfg" default.cfg 434 B · 1 download Worked perfectly. Like others, X-Arcade does not have very good support for newbies! Quote Link to comment Share on other sites More sharing options...
Truest1 Posted May 25, 2023 Share Posted May 25, 2023 On 12/9/2019 at 7:07 PM, lindenwood98 said: I downloaded the HOT KEY program from X-Arcade. And it works fine Yes this Hot key does the job. But I'm having the issue when I have the hot key running. Other things like going to shutdown the PC i press shut down and another window opens and does not shut down windows. I have to disable hot key from x-arcade and then it works. And other similar issues come up as well. Anyone else experiencing this issue? Quote Link to comment Share on other sites More sharing options...
