Typhoon1944

RetroArch Mega/Sega CD problems.

Recommended Posts

Apologies if this is the wrong area to post this in.  I've searched to see if anyone else has a similar problem but I can't find anything and I would have asked in the Libretro forums but I'm not allowed to for some reason.

My issue is that my Sega CD ISOs won't load in RetroArch using either PicoDrive or Gen Plus GX.  I thought it may have been the way the games were packaged (ISO, CUE & WAV files) but I've used Daemon Tools and Imgburn to repackage them into BIN & CUE files but that didn't help.

I don't think it's a ROM problem as the original ISOs play well in PicoDrive on my PSP and they'll also run in Windows using Kega Fusion so it appears to be an issue with RetroArch but I can't figure out what.  I've tried putting the BIOS files directly in the Sega CD ROMs folder and also in the System folder in the RetroArch directory but no deal.  Both cores are telling me the BIOS files are present.

I have MAME, Neo Geo, CPS 1 & 2, Game Gear, Master System, Megadrive, 32x, SG 1000, GameBoy/GB Colour, GB Advance, DS, NES, SNES, N64, Lynx, Jaguar and even Steam games all running like a dream through Launchbox and ideally I'd like to use RetroArch for everything but I'm almost at the point of just leaving Fusion installed and telling Launchbox to use that just for Sega CD.

Any assistance would be appreciated.

Share this post


Link to post
Share on other sites

Do you have the bios and have them named properly ?

bios_CD_E.bin
bios_CD_U.bin
bios_CD_J.bin

They need to go in to the /system folder. Check your paths in the Retroarch config to make sure your system folder is pointing to the right place.

Also are you trying to load the cue sheets and not the bin files ?

Share this post


Link to post
Share on other sites

Hi lordmunkus, thanks for the reply.  Yes that's the exact format. The path to the BIOS files is D:\RetroArch\System.  I'm loading the cue sheet but the others are ISOs and WAV files.

Share this post


Link to post
Share on other sites

I'm not sure how well it handles iso + wavs. None of my Sega CD games use that format at all, they are all cue + bin.

Share this post


Link to post
Share on other sites

Apologies.  This may be a duplicate post as I replied from my phone earlier but it doesn't appear to be here.

@lordmonkus I've used Daemon-Tools and Imgburn to convert the ISOs into CUE & BIN files but it makes no difference.  If they are run through LaunchBox the pointer will change to the Windows 10 spinning circle for a few seconds, the Launchbox window will shrink slightly then nothing happens.  If I run them through PicoDrive or Gen Plus GX directly from RetroArch it crashes and dumps me back out to the desktop.  I say it crashes but I'm not 100% sure as there are no error messages.  RetroArch just closes.  Picodrive on my PSP runs the ISOs with no issues and if I use Kega Fusion in Windows the ISOs work as well although I appreciate these are standalone emulators.  I genuinely think this is an issue with the cores rather than the games but I'm a new member on the Libretro forums and my permissions are set so I'm unable to submit new posts or reply to existing ones so I can't ask there.

@jadekitten I am importing the CUE files and the games are all showing up.  They'll even download the metadata from the LaunchBox and EmuMovies databases.

Edited by Typhoon1944

Share this post


Link to post
Share on other sites

I have Android Assault loading from .cue with .iso and many .wav files only issue is it doesn't play the audio like fusion does. I'm going to look for a new copy actually as I want it to be the same format as my other games. Searching I have a few other .iso files but they seem to be working fine and playing audio in RA so it shouldn't be that it doesn't like .iso files as much it doesn't like your .iso files

Share this post


Link to post
Share on other sites

Kega Fusion doesn't seem to have any issues with my ISOs so I think I'm just going to keep that installed.  I'll tell LaunchBox to use that only for Sega CD games and the individual RetroArch cores for everything else.

Share this post


Link to post
Share on other sites

Fusion doesn't allow for disc swapping that its worst flaw as an emulator that and the dev doesn't show it any love.

Share this post


Link to post
Share on other sites

I can almost guarantee something isn't setup right or your disk images are bad because  Retroarch and the Genesis GX core works perfectly. Have you tried getting some new images already in cue + bin format ?

Have you tried other CD based systems like PSX or TurboGrafx CD ? If those work then your bios location is correct but if they don't then I will still think it's a bios issue.

Share this post


Link to post
Share on other sites

Do a Google search for the correct md5 checksum for the bios. I was having that issue when switching to retroarch, the ones I was using weren't the ones RA is programmed to use.

Share this post


Link to post
Share on other sites

Yeah if it just closes with no error message I'm inclined to think it's a problem with your bios files. It's not guaranteed, but that seems the most likely to me; especially if literally no games are working with it (and those rips are working with other emulators apparently). The System sub directory is the correct one to put them in. Echoing lordmonkus, I use the Genesis Plus GX core and it works great for Sega CD.

Share this post


Link to post
Share on other sites

Yeah it sounds like your bios my not be the ones retro arch wants to see.  I remember downloading a few different ones and re-naming them to what retroarch wanted to see and it seemed to do the trick.

Share this post


Link to post
Share on other sites

Sorry for taking so long to reply.  I've downloaded various BIOS files but no change.  Maybe they're the same ones but from different locations or something.

@lordmonkus I've tried file that's already in the BIN & CUE format and also a PSX ISO.  Neither worked.

Share this post


Link to post
Share on other sites

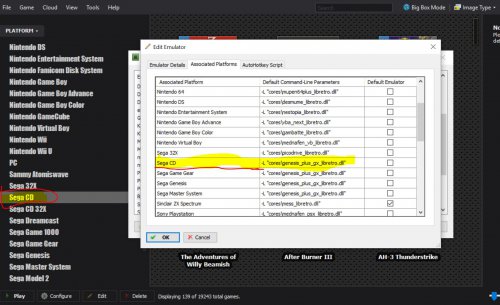

Ok lets make sure everything is set up correctly. In the image you will see the highlighted areas now 1st does your platform name to the left say Sega CD the same as the Associated platform in edit emulator form if not then that is your problem right off the bat. If it does match do you have the command line filled out correctly with all the right spaces "s and no typos sorry for the rudimentary questions but nothing has worked so far so I'm taking it back to beginner level.SEGACD_RA.JPG

Share this post


Link to post
Share on other sites

@dos76 Yes, both the platform in the main screen and in the Associated Platform area of the Edit Emulator section say Sega CD.  The command line is also -L "cores\genesis_plus_gx_libretro.dll"

Share this post


Link to post
Share on other sites

If neither Sega CD or Playstation is working then my next guess if your /system folder location isn't set right in Retroarch.

Go to the "settings" menu (the cogwheel) and scroll all the way down to "Directory", go in there and the very first setting "System/BIOS" check that and make it is pointing to the /system folder in your Retroarch install folder.

Share this post


Link to post
Share on other sites

Yes it is.  Attached is my retroarch.cfg file if you can see any issues with that.  I even overwrote my system folder with DOS76's but that didn't help either.  Where it says system_directory = ":\retroarch\system" I've tried changing it to read system_directory = "d:\retroarch\system".

retroarch.cfg

Share this post


Link to post
Share on other sites

In your config change the line

system_directory = ":\retroarch\system"

to

system_directory = ":\system"

Try that and see what happens.



  • Like 1

Share this post


Link to post
