Use different images in Pause Screen

[JoeViking245]

I created platform device images that show the platform co ntroller and the corresponding buttons for my cab in which I incorporated into my main theme.I would like to be able to add that image to the pause screen which is (I'm pretty positive)

<Image Source="{Binding Path=SelectedPlatform.DeviceImagePath}" />

I tried adding that in and it doesn't work.

<Image Grid.Row="1" Grid.Column="1" Grid.ColumnSpan="2" Source="{Binding SelectedPlatform.DeviceImagePath}" VerticalAlignment="Center"
                HorizontalAlignment="Center" RenderOptions.BitmapScalingMode="HighQuality">
    <Image.Effect>
         <DropShadowEffect BlurRadius="10" Direction="-90" RenderingBias="Quality" ShadowDepth="1" />
    </Image.Effect>
</Image>

My guess is that once the game is loaded, the platform becomes irrelevant so is not stored.  Hopefully I'm wrong and just messed up the code.

As a workaround I know I can copy that image to all the game-names.png and put them into an "Arcade - Controls Information" folder for the given platform and just use SelectedGame.ArcadeControlsInformationImagePath.  This doesn't solve the issue of per-game controls for consoles which I agree would be an extreme undertaking and is not important to me.  It would be nice to be able to use the 1 image rather than creating a mess of duplicates.

Anyone have any thoughts?  Hopefully simply something I overlooked or missed

[Retro808]

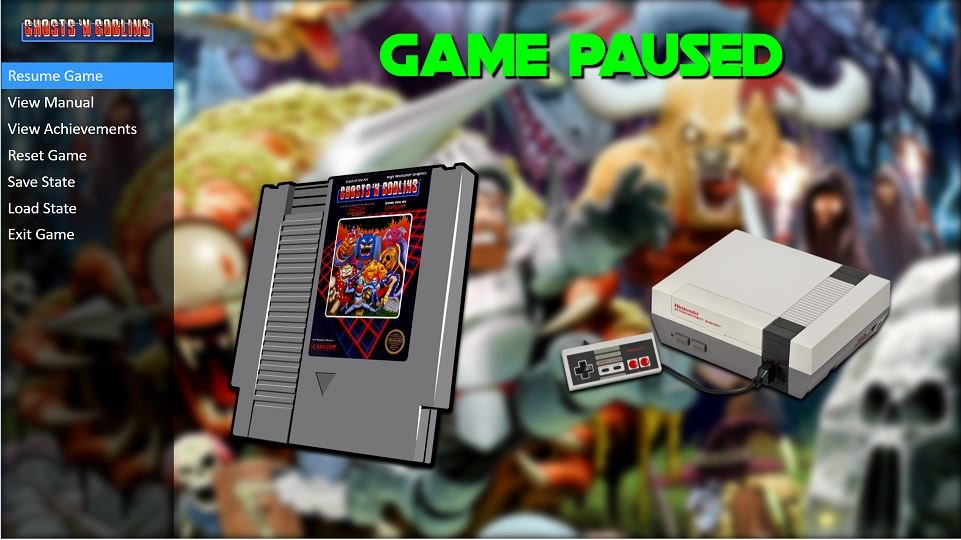

Use the following binding if you are storing the images in the \LaunchBox\Images\Platforms\[Platform Name]\Device folder. Here it is working in an edit of a Pause theme I was messing with.

Source="{Binding Platform.DeviceImagePath}"



[JoeViking245]

That's the ticket!  Thanks @Retro808!

Now just a little image size adjustment, and I'll be a happy(ier) camper. Easy peasy

[Retro808]

Cool. Glad you got it sorted.

[JoeViking245]

Here I am 2 years later... went to pause a game and this doesn't seem to be working anymore.   The Pause Theme works fine.  It's just the 'Device' image isn't showing anymore.

I double checked that the image is still there, and it is.  With LB running, I also checked in the ../Core/Images/Platforms/ [platform] /Device/  (linked/shortcut) folder, and it's 'there' too.  I then made a copy of the ../PauseThemes/Default/   folder, edited Default.xaml and changed the Source on one of the <Image> lines as noted above.  Still no joy.

Did by chance something change with: ?

Source="{Binding Platform.DeviceImagePath}"

I did do another test to prove to myself the image is good/readable by using

Source="{}pack://siteoforigin:,,,/PauseThemes/Default - Copy/NES.png"

..and that worked.  But obviously not ideal.

Any thoughts or advice would be greatly appreciated.

[JaysArcade]

I was messing around last night trying to edit a copy of Faeran's PausePie theme for my own use and I couldn't get any of the alternate image bindings to work either. Image Source ="{Binding BackgroundImagePath} works but the other image bindings I tried didn't seem to do anything. I chalked it up to me not really knowing what I was doing, but now I'm not so sure....

[faeran]

49 minutes ago, JaysArcade said:

I was messing around last night trying to edit a copy of Faeran's PausePie theme for my own use and I couldn't get any of the alternate image bindings to work either. Image Source ="{Binding BackgroundImagePath} works but the other image bindings I tried didn't seem to do anything. I chalked it up to me not really knowing what I was doing, but now I'm not so sure....

Just ran a few tests and seems like it all should still work. Send me a PM if you need help.
