vaderag Posted June 10, 2020 Share Posted June 10, 2020 Okay, so this is a really stupid question... I have LEDBlinky and ServoStik set up in my Launchbox, but I've completely forgotten how I did it as I did it so long ago. Everything works as I'd expect, but I just came across a game that needs the ServoSick to be in 4 way rather than 8 way... were do I set this in Launchbox? I've just been looking around and can't find it anywhere! Thanks Quote Link to comment Share on other sites More sharing options...
DOS76 Posted June 10, 2020 Share Posted June 10, 2020 there isn't any settings for that in LB. Quote Link to comment Share on other sites More sharing options...
Headrush69 Posted June 10, 2020 Share Posted June 10, 2020 (edited) That’s all set in LEDBlinkyControls. If there is no entry for the system/game you are missing, you’ll have to add one. Than add a control: 42 way, 4 way or 8 way, and make sure you click the option that it is a primary control. If you have servostick option enabled in LEDBlinkyConfig, you’re all set. Edited June 10, 2020 by Headrush69 1 Quote Link to comment Share on other sites More sharing options...
wallmachine Posted June 10, 2020 Share Posted June 10, 2020 (edited) 2 hours ago, vaderag said: I just came across a game that needs the ServoSick to be in 4 way rather than 8 way... were do I set this in Launchbox? You have a various options. 1. You already have LEDBlinky, see this post 2. RocketLauncher 3. Batch files for 4way and 8way 4. See this thread for various options 5. LEDBlinky documentation Quote Enable JDR Mode Joystick Digital Restriction (JDR) allows digital joysticks such as an Ultimarc UltraStik 360 or a 49-Way controlled via the Groovy Game Gear GP-Wiz49 Max/Eco to be configured as is appropriate for the active game (2-way, 4-way, 8-way, etc.). An Ultimarc ServoStik’s restrictor plate can also be switched between 4-way and 8-way. When a game is started, the JDR mode is set based on the game’s primary control. When the front-end is active, the JDR mode is set to 4-way by default. Quote ServoStik (4/8) Check this box to enable automatic 4-way/8-way switching for any/all ServoStik joysticks. Do not enable this feature if your control panel does not use any ServoStiks. The ServoStik restrictor plate will be rotated into 4-way mode for any game which uses a 4-way or 2-way joystick as its primary control. For all other games (or the front-end), the restrictor plate will be rotated into 8-way mode. Edited June 10, 2020 by wallmachine Quote Link to comment Share on other sites More sharing options...
vaderag Posted June 10, 2020 Author Share Posted June 10, 2020 Thanks all! With that prompting I'm pretty certain I set this in LEDBlinky, so I will go dive into those settings 1 Quote Link to comment Share on other sites More sharing options...
vaderag Posted June 10, 2020 Author Share Posted June 10, 2020 Hmm... Just took a look and changed the control type from 8way to 4way and set to an primary in Ledblinky and still switching to 8 way... Quote Link to comment Share on other sites More sharing options...
wallmachine Posted June 10, 2020 Share Posted June 10, 2020 2 minutes ago, vaderag said: Hmm... Just took a look and changed the control type from 8way to 4way and set to an primary in Ledblinky and still switching to 8 way... What about the frontend buttons are you setting for BigBox? Quote Link to comment Share on other sites More sharing options...
Headrush69 Posted June 10, 2020 Share Posted June 10, 2020 100% sure it exact system name and game name? Turn on LEDBlinkys debugging, it’s logging is very descriptive and will likely show the issue easily 1 Quote Link to comment Share on other sites More sharing options...
Headrush69 Posted June 10, 2020 Share Posted June 10, 2020 1 minute ago, wallmachine said: What about the frontend buttons are you setting for BigBox? Shouldn’t matter unless the LEDBlinky is thinking emu ended early. So in essence it’s going 8 way to 4 way and back to 8 way. what game and system? Quote Link to comment Share on other sites More sharing options...

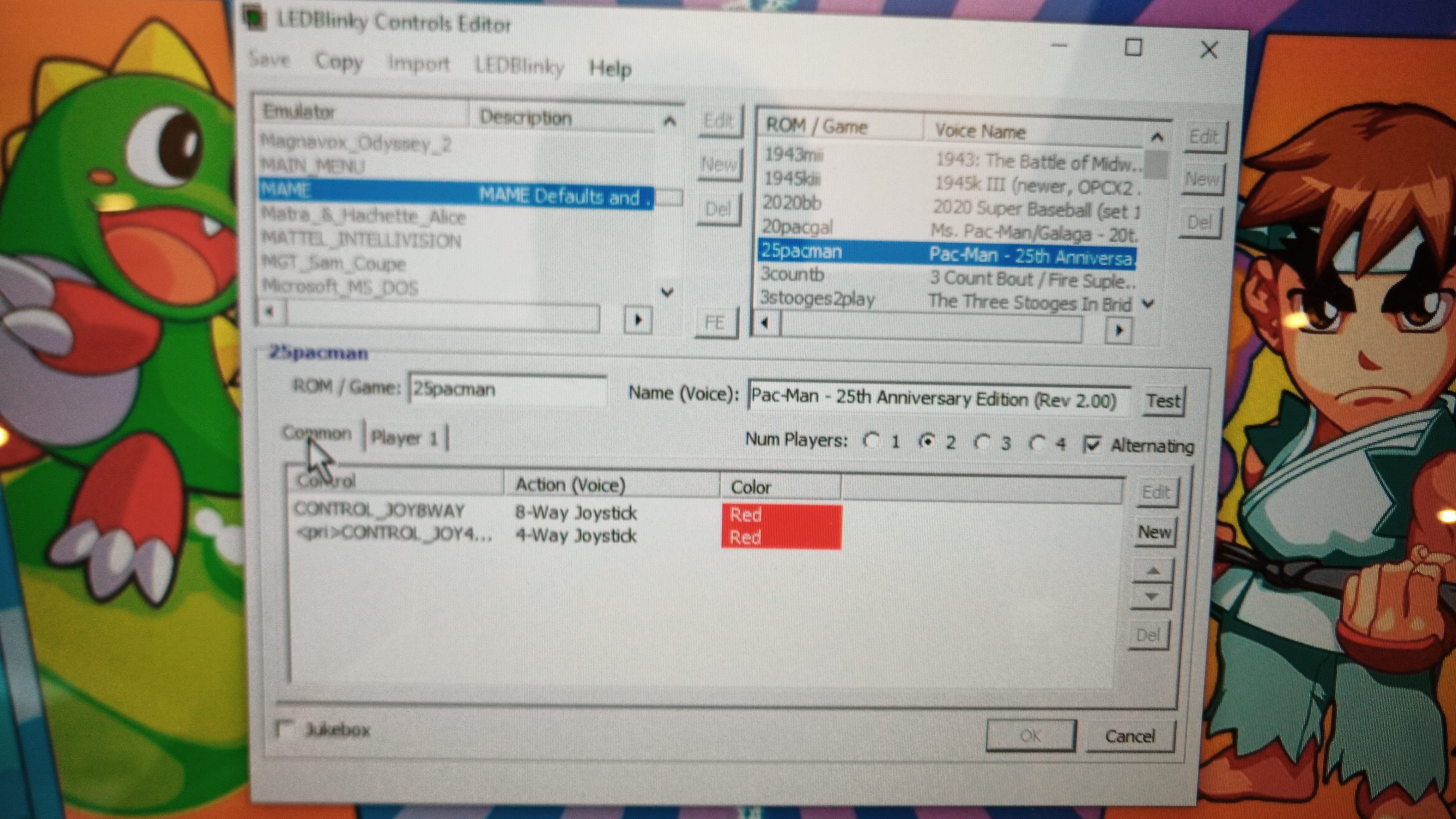

vaderag Posted June 10, 2020 Author Share Posted June 10, 2020 (edited) 33 minutes ago, Headrush69 said: Shouldn’t matter unless the LEDBlinky is thinking emu ended early. So in essence it’s going 8 way to 4 way and back to 8 way. what game and system? Name PacMan 25th I've changed the settings in control editor, am I doing this in the right place? Changed to 4way and set as primary Edited June 10, 2020 by vaderag Quote Link to comment Share on other sites More sharing options...
Headrush69 Posted June 10, 2020 Share Posted June 10, 2020 Make sure LB is running the same variant of that Mame rom as well. Ex: not 25pacmano why do you have that 8 way control in common tab too? Quote Link to comment Share on other sites More sharing options...

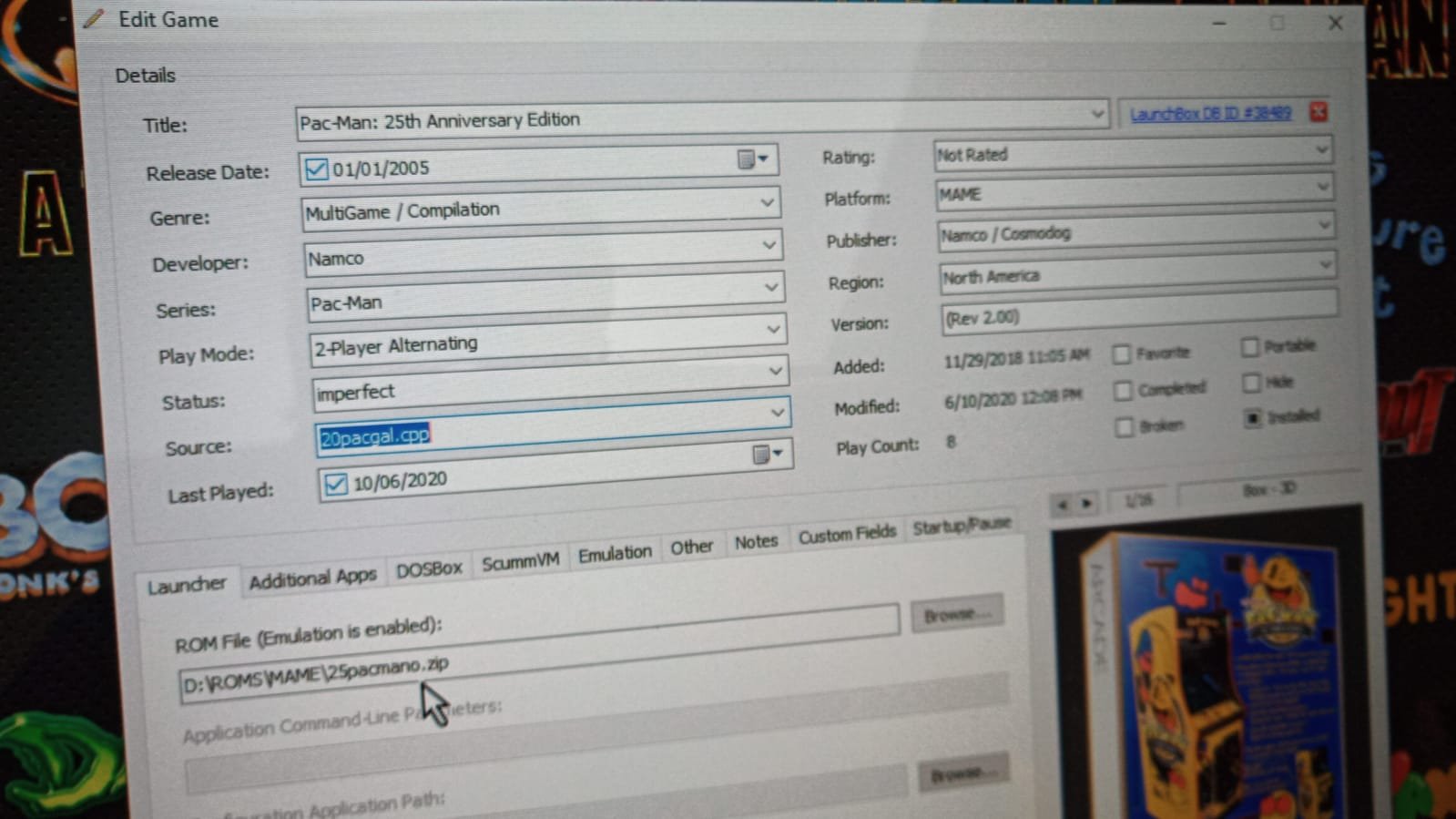

vaderag Posted June 10, 2020 Author Share Posted June 10, 2020 (edited) 1 hour ago, Headrush69 said: Make sure LB is running the same variant of that Mame rom as well. Ex: not 25pacmano why do you have that 8 way control in common tab too? 8 way was there initially, I just added 4 way and set as primary Testing with LEDBlinky Controls Editor it's working as expected. Launchbox / mame seems to change it... Hmm... Looks like I might be using 25pacmano for some reason... It 20pacgal Why would this be? Edited June 10, 2020 by vaderag Quote Link to comment Share on other sites More sharing options...
Headrush69 Posted June 10, 2020 Share Posted June 10, 2020 I’d remove the 8-way and change or add 25pacmano also. That 20pacgal is the source file that can contain code used by lots of games, even totally different ones. (Sort of like a hardware set). You can ignore that, doesn’t affect LEDBlinky. Quote Link to comment Share on other sites More sharing options...
vaderag Posted January 9, 2023 Author Share Posted January 9, 2023 Reawakening my very old thread as I've been completely re-setting up my machine after a crash... Now, I have a slightly different question - is there a way to make Launchbox / Big Box use an 8 way joystick as opposed to 4 way? Just want to avoid much unnecessary changing since most of my games are 8way Quote Link to comment Share on other sites More sharing options...
Headrush69 Posted January 9, 2023 Share Posted January 9, 2023 (edited) 7 hours ago, vaderag said: Reawakening my very old thread as I've been completely re-setting up my machine after a crash... Now, I have a slightly different question - is there a way to make Launchbox / Big Box use an 8 way joystick as opposed to 4 way? Just want to avoid much unnecessary changing since most of my games are 8way Yup. Click the FE button in LEDBlinkyControlsEditor and add 8-way joystick and set it as primary. Edited January 9, 2023 by Headrush69 Quote Link to comment Share on other sites More sharing options...

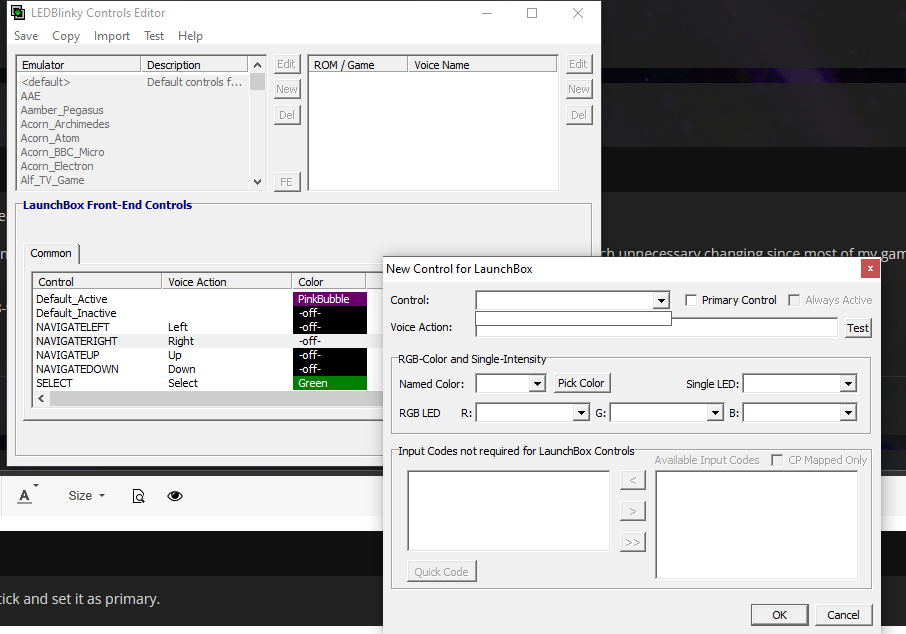

vaderag Posted January 10, 2023 Author Share Posted January 10, 2023 12 hours ago, Headrush69 said: Yup. Click the FE button in LEDBlinkyControlsEditor and add 8-way joystick and set it as primary. You see, that's what I thought I should do... But... my dropdown is empty in the FE setting so I can't... It's there everywhere else... Quote Link to comment Share on other sites More sharing options...
Headrush69 Posted January 10, 2023 Share Posted January 10, 2023 (edited) If you temporarily rename LEDBlinkyControls.xml, restart LEDBlinky and than try again does the entry reappear in Controls Editor? If you need to manually add it to your LEDBlinkyControls.xml, here is a copy of mine: Quote <frontEnd fename="LaunchBox"> <controlGroup groupName="DEFAULT" defaultActive="48,48,48,48" defaultInactive="0,0,0,0" ledwizGlobalPulse="3"> <player number="0"> <control name="SEARCH" voice="Search" color="Blue"/> <control name="SWITCHVIEW" voice="Switch View" color="White"/> <control name="SELECT" voice="Select" color="Green"/> <control name="BACK" voice="Back" color="Red"/> <control name="PLAYGAME" voice="Play Game" color="Green"/> <control name="PAGEUP" voice="Page Up" color="Magenta"/> <control name="PAGEDOWN" voice="Page Down" color="Magenta"/> <control name="CONTROL_JOY8WAY" voice="" primaryControl="1" color="Red"/> <control name="NAVIGATELEFT" voice="Left" color="Red"/> <control name="NAVIGATERIGHT" voice="Right" color="Red"/> <control name="NAVIGATEUP" voice="Up" color="Red"/> <control name="NAVIGATEDOWN" voice="Down" color="Red"/> </player> </controlGroup> </frontEnd> Edited January 10, 2023 by Headrush69 1 Quote Link to comment Share on other sites More sharing options...
vaderag Posted January 10, 2023 Author Share Posted January 10, 2023 Will check in a bit... I'm away from the machine right now but I wonder if it might be due to some other setting - I'm actually using a static animation for my LB controls as opposed to what is listed there - wonder if that setting is overriding it or something Quote Link to comment Share on other sites More sharing options...
vaderag Posted January 10, 2023 Author Share Posted January 10, 2023 6 hours ago, Headrush69 said: If you temporarily rename LEDBlinkyControls.xml, restart LEDBlinky and than try again does the entry reappear in Controls Editor? If you need to manually add it to your LEDBlinkyControls.xml, here is a copy of mine: Thanks - nicked the `<control name="CONTROL_JOY8WAY" voice="" primaryControl="1" color="Red"/>` from you and it worked - odd that I don't get the option to add anything there in the UI, but I'll survive! Quote Link to comment Share on other sites More sharing options...
