[eddiemonsta]

1 hour ago, C-Beats said:

12.0 is live if you want to download and take a look

Just wanted to say thanks to all involved. Works a treat. And thanks to @Mr. RetroLust and his filler magic they look pretty damn good too.

[Briantodd]

New to Launchbox

I have read the prior posts

I have a 1920 x 360 24inch monitor

I have tried the prior XAML files from the prior posts to help with my second monitor for the marquee

I am trying to "fill" the entire marquee and eliminate the black side borders

Is there an available XAML file for the marqueeview and gameview folders to enable this

trying to learn/ hard process

appreciate any help

[C-Beats]

6 hours ago, Briantodd said:

New to Launchbox

I have read the prior posts

I have a 1920 x 360 24inch monitor

I have tried the prior XAML files from the prior posts to help with my second monitor for the marquee

I am trying to "fill" the entire marquee and eliminate the black side borders

Is there an available XAML file for the marqueeview and gameview folders to enable this

trying to learn/ hard process

appreciate any help

What version of LaunchBox are you on? Should be a matter of just changing the fill type used in the XAML file for the most part.

[Retro808]

@Briantodd Not sure which xaml in this thread you tried, but like @C-Beats mentioned if you just edit the "Stretch" to either "Fill" (which will stretch the entire image to fill the available space) of "UniformToFill" (which will crop the image as it fills the space). Possibly even change the Alignment from "Center" to "Stretch"

One of the xaml I posted here already has the image set to fill. (see the below code)

<Image Source="{Binding Path=SelectedGame.MarqueeImagePath}" Panel.ZIndex="1" Stretch="Fill" HorizontalAlignment="Center" VerticalAlignment="Center" RenderOptions.BitmapScalingMode="HighQuality">



[Briantodd]

Thanks for help

I am on the current Launchbox version

if I copy and rename the default XAML file, do I just need to change only the 1 parameter from stretch to fill in that 1 line you sent ?

Do I need to change the height and width to 1920x 360 from the default parameter

there are 2 marquee XAMl files (game view and marquee view)

are there changes on the other XAMl file needed as well  ?



thanks for help

very appreciative of support

[Briantodd]

This is my issue

I tried to replace “stretch” to “fill”

But still have the black borders on the sides



any recommendations to have the marquee fill the screen

[Retro808]

@Briantodd Can you post the marquee files you are using.

[Briantodd]

Certainly

thsnks

coming your way in a few min

[Briantodd]

<UserControl xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:coverFlow="clr-namespace:Unbroken.LaunchBox.Windows.Controls.CoverFlow;assembly=Unbroken.LaunchBox.Windows"
    mc:Ignorable="d"
    d:DesignHeight="360"
    d:DesignWidth="1920"
    HorizontalAlignment="Stretch"
    VerticalAlignment="Stretch"
    FocusVisualStyle="{x:Null}"
    BorderThickness="0"
    Margin="0"
    Padding="0"
    Background="#000">
    <Grid VerticalAlignment="Stretch" HorizontalAlignment="Stretch">
        <coverFlow:FlowImage CreateFallbackImage="False" DataContext="{Binding SelectedGame}" ImageType="Boxes" Stretch="Uniform" StretchDirection="Both" HorizontalAlignment="Center" VerticalAlignment="Center" RenderOptions.BitmapScalingMode="HighQuality">
            <coverFlow:FlowImage.Style>
                <Style TargetType="{x:Type coverFlow:FlowImage}">
                    <Setter Property="Visibility" Value="Hidden"/>
                    <Style.Triggers>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding ElementName=MarqueeImage, Path=HasImage}" Value="False" />
                                <Condition Binding="{Binding ElementName=LogoImage, Path=HasImage}" Value="False" />
                                <Condition Binding="{Binding ElementName=MarqueeVideo, Path=HasVideo}" Value="False" />
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Visibility" Value="Visible"/>
                        </MultiDataTrigger>
                    </Style.Triggers>
                </Style>
            </coverFlow:FlowImage.Style>
        </coverFlow:FlowImage>
        <Grid VerticalAlignment="Stretch" HorizontalAlignment="Stretch">
            <Grid.Style>
                <Style TargetType="{x:Type Grid}">
                    <Setter Property="Visibility" Value="Hidden"/>
                    <Style.Triggers>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding ElementName=MarqueeImage, Path=HasImage}" Value="False" />
                                <Condition Binding="{Binding ElementName=LogoImage, Path=HasImage}" Value="True" />
                                <Condition Binding="{Binding ElementName=MarqueeVideo, Path=HasVideo}" Value="False" />
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Visibility" Value="Visible"/>
                        </MultiDataTrigger>
                    </Style.Triggers>
                </Style>
            </Grid.Style>
            <Image Source="{Binding SelectedGame.BackgroundImagePath}" Stretch="UniformToFill" HorizontalAlignment="Center" VerticalAlignment="Center" RenderOptions.BitmapScalingMode="HighQuality">
                <Image.Effect>
                    <BlurEffect Radius="20"/>
                </Image.Effect>
            </Image>
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="1*"/>
                    <ColumnDefinition Width="6*"/>
                    <ColumnDefinition Width="1*"/>
                </Grid.ColumnDefinitions>
                <Grid.RowDefinitions>
                    <RowDefinition Height="1*"/>
                    <RowDefinition Height="6*"/>
                    <RowDefinition Height="1*"/>
                </Grid.RowDefinitions>
                <coverFlow:FlowImage x:Name="LogoImage" Visibility="Collapsed" CreateFallbackImage="False" DataContext="{Binding SelectedGame}" ImageType="Clear Logo" Stretch="Uniform" StretchDirection="Both"
                                     HorizontalAlignment="Center" VerticalAlignment="Center" RenderOptions.BitmapScalingMode="HighQuality" />
                <Image Grid.Row="1" Grid.Column="1" Source="{Binding SelectedGame.ClearLogoImagePath}" Stretch="Uniform" HorizontalAlignment="Center" VerticalAlignment="Center" RenderOptions.BitmapScalingMode="HighQuality" />
            </Grid>
        </Grid>
        <coverFlow:FlowImage x:Name="MarqueeImage" CreateFallbackImage="False" DataContext="{Binding SelectedGame}" ImageType="Marquees" Stretch="Fill" StretchDirection="Both" HorizontalAlignment="Center" VerticalAlignment="Center" RenderOptions.BitmapScalingMode="HighQuality">
            <coverFlow:FlowImage.Style>
                <Style TargetType="{x:Type coverFlow:FlowImage}">
                    <Setter Property="Visibility" Value="Hidden"/>
                    <Style.Triggers>
                        <MultiDataTrigger>
                            <MultiDataTrigger.Conditions>
                                <Condition Binding="{Binding RelativeSource={RelativeSource Self}, Path=HasImage}" Value="True" />
                                <Condition Binding="{Binding ElementName=MarqueeVideo, Path=HasVideo}" Value="False" />
                            </MultiDataTrigger.Conditions>
                            <Setter Property="Visibility" Value="Visible"/>
                        </MultiDataTrigger>
                    </Style.Triggers>
                </Style>
            </coverFlow:FlowImage.Style>
        </coverFlow:FlowImage>
        <coverFlow:FlowVideo x:Name="MarqueeVideo" VideoType="Marquee" DataContext="{Binding SelectedGame}" PlayVideo="True" PlayAudio="False" FallbackToDefault="False">
            <coverFlow:FlowVideo.Style>
                <Style TargetType="{x:Type coverFlow:FlowVideo}">
                    <Setter Property="Visibility" Value="Visible"/>
                    <Style.Triggers>
                        <DataTrigger Binding="{Binding RelativeSource={RelativeSource Self}, Path=HasVideo}" Value="False">
                            <Setter Property="Visibility" Value="Hidden"/>
                        </DataTrigger>
                    </Style.Triggers>
                </Style>
            </coverFlow:FlowVideo.Style>
        </coverFlow:FlowVideo>
    </Grid>
</UserControl>

[Retro808]

@Briantodd  What theme are you using?

[C-Beats]

@Briantodd Is that a marquee image? If so could you check the element named "MarqueeImage" and set it's alignment properties to Stretch instead of Center and let us know if that corrects the issue for you?

[Briantodd]

Appreciate input

i tried numerous themes with no change

Yes All my images are set as marquee images

they all seem centered not stretched

where do I find the marqueeimage alignment property to switch from center to stretch ?



[C-Beats]

Same line as the string x:Name="MarqueeImage"

[Briantodd]

Success

sincere appreciation



thanks for the time and effort

[RaGaDK]

Hello,

Sorry for bumping this thread, but I have a question like this one.

I recently got my arcade up and running - and Marquee is not displaying correct.

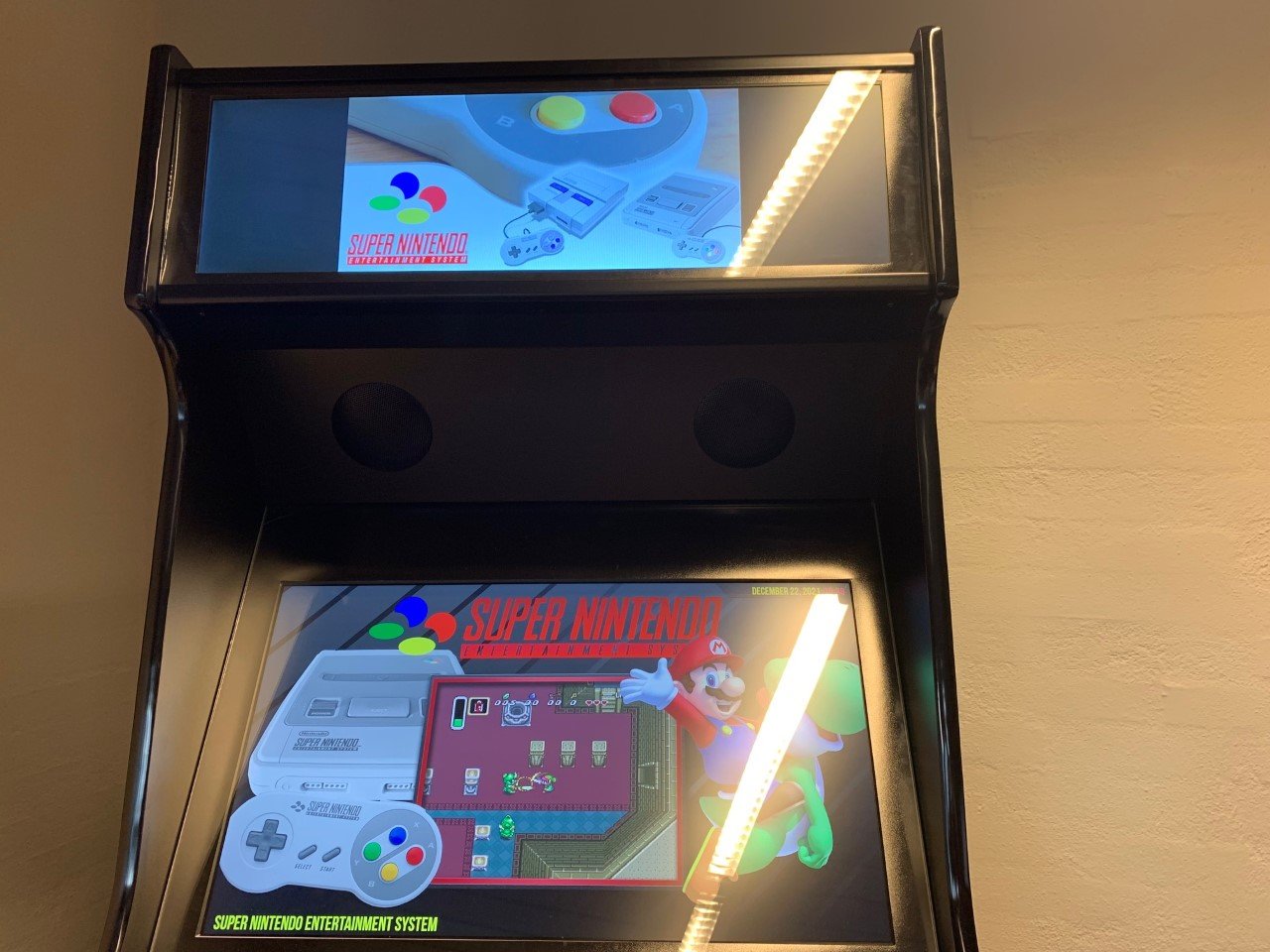

I use the Unified theme, and it looks like the picture, when I start it up.

I use a Sunul SR24-540 monitor in the top of the arcade, and it outputs 1920x1080p from my GTX1060 card.

All good - I just want the marquee to display on the bottom half of the screen - stretched to 1920x540 instead of using the full monitor size, which Windows thinks is a 1920x1080 for some reason.

Tried editing the Marquee xaml file - can someone help me out, what I need to do?



As you see in the image it does not fill the bottom half - it's like it's cut off or something, and black bars on both sides.



Thank you, and have a merry christmas!

[JoeViking245]

4 hours ago, RaGaDK said:

As you see in the image it does not fill the bottom half - it's like it's cut off or something, and black bars on both sides.

Instead of using the (almost square [600x578]) Banner, could you use the (more rectangle [1040x214]) Clear Logo instead?

[RaGaDK]

14 minutes ago, JoeViking245 said:

Instead of using the (almost square [600x578]) Banner, could you use the (more rectangle [1040x214]) Clear Logo instead?

Hi Joe,

Thanks man - how do I do that?

All the best.

- Thomas

[Retro808]

34 minutes ago, RaGaDK said:

Hi Joe,

Thanks man - how do I do that?

All the best.

- Thomas

You would have to download a different aspect ratio image.

You can edit the xaml to fit images in the available space. Issue is, if you use squared shaped images it will squish and stretch the image. To do this you would need to edit the marquee view xaml and change the stretch. It is possibly set to Stretch="Uniform". You can change to Stretch="UniformtoFill" and that will crop some of the image to try an keep aspect ratio, but will fill the space. Or Stretch="Fill" and it will simply squish and stretch the image to fill the space.

If the theme you are using does not have a PlatformMarqueeView.xaml and a GameMarqueeView.xaml then a custom one would need to be created to fix for a better image fit.
