AlphaUMi Posted July 27, 2022 Share Posted July 27, 2022 Hi! I'm trying to increase the font size of games details (description) for certain custom themes, because I find it just a little small. Only the game details font size, not the other components of the layout. I searched the file structure of custom themes, and there are several xaml files, and xml files too. I'm not a complete noob in editing code, I just would like to know which file(s) and, most importantly, which line(s) do I have to edit in order to achieve what I said. Could someone be of help on this regard? Thanks in advance! Quote Link to comment Share on other sites More sharing options...
C-Beats Posted July 27, 2022 Share Posted July 27, 2022 The two files you need are in \\LaunchBox\Themes\{THEME_NAME}\Views. You want FiltersDetailView.xaml for the platform details, and GameDetailsView.xaml for the Game Details. Depending on which theme changes where the change needs to be in those files. Basically you're looking for TextBlock elements and just need to type "FontSize="x"" (without the outer quotes, and replacing x with the size you want) in the element. 2 Quote Link to comment Share on other sites More sharing options...

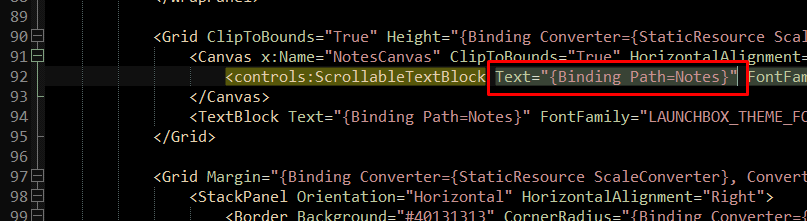

JoeViking245 Posted July 27, 2022 Share Posted July 27, 2022 3 hours ago, AlphaUMi said: increase the font size of games details (description) The game 'description' is what you have listed in Notes. And like you said, it's part of the Game Details. The view you want to look into (and edit) is the GameDetailsView. ../LaunchBox/Themes/your_theme_to_edit/Views/GameDetailsView.xaml In that xaml, search for Text="{Binding Path=Notes}" Using the Default theme as an example, you'll find the first (of 2) hits on line 92 On that same line, scroll over until you see FontSize="{Binding Converter={StaticResource ScaleConverter}, ConverterParameter='30'}". Chances are in the custom theme you're editing it's not using the converters. So it may simply be FontSize="30". Either way, 30 is the value that you want to adjust. Do the same on other lines that have Text="{Binding Path=Notes}" (if applicable). Each Theme you look at may (or may not) look the same as my example. But the key points to take away from this are in bold and underlined above. 1 Quote Link to comment Share on other sites More sharing options...
C-Beats Posted July 27, 2022 Share Posted July 27, 2022 You're file MAY not read the same as @JoeViking245's does. He is referring to the new default that is currently only available in the beta release. If you are not on the latest beta you're file won't have that EXACT line in it, and adding it with that converter will cause you errors when you try to run Big Box (because they don't exist yet in your installation). 1 Quote Link to comment Share on other sites More sharing options...

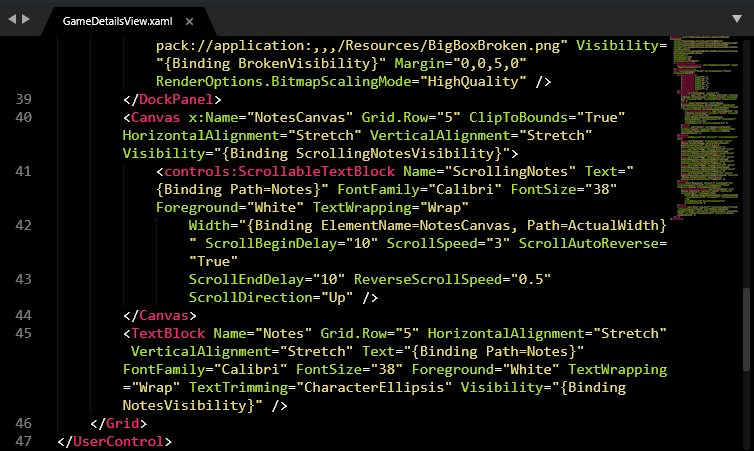

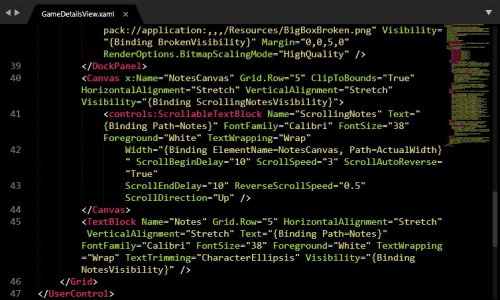

AlphaUMi Posted July 27, 2022 Author Share Posted July 27, 2022 Hi @JoeViking245and @C-Beats! Thank you for your support, both of you gave me some pieces of useful information. I started with the theme "Pulse". Please see line 41 and 45. I added FontSize="38" after FontFamily="Calibri", and nothing else. I tried with different values, and ended up with this huge value just to see what happens. Well, nothing has changed no matter what value I put in there. What I am doing wrong? Quote Link to comment Share on other sites More sharing options...
C-Beats Posted July 27, 2022 Share Posted July 27, 2022 Try removing the name from the TextBlock and see if that corrects it. Quote Link to comment Share on other sites More sharing options...
AlphaUMi Posted July 27, 2022 Author Share Posted July 27, 2022 20 minutes ago, C-Beats said: Try removing the name from the TextBlock and see if that corrects it. Do you mean " Name="Notes" " in line 45? I just tried, but nothing changed. 😔 Quote Link to comment Share on other sites More sharing options...
AlphaUMi Posted July 27, 2022 Author Share Posted July 27, 2022 Damn, I tried an experiment: move the file "GameDetailsView.xaml" elsewhere from Themes\Pulse\Views\ and again, nothing changed. It even didn't broke the theme. Quote Link to comment Share on other sites More sharing options...
thimolor Posted July 27, 2022 Share Posted July 27, 2022 Why not just download the CTC files for Pulse amd change from there. Then copy the modified view to the theme folder after publishing, this way you don't have to worry about the wall views breaking down(cant build wall views with ctc). 1 Quote Link to comment Share on other sites More sharing options...
AlphaUMi Posted July 31, 2022 Author Share Posted July 31, 2022 On 7/27/2022 at 10:54 PM, Juketsu said: Why not just download the CTC files for Pulse amd change from there. Then copy the modified view to the theme folder after publishing, this way you don't have to worry about the wall views breaking down(cant build wall views with ctc). Hi Juketsu! What is CTC? And download from where? GitHub? Quote Link to comment Share on other sites More sharing options...
Retro808 Posted July 31, 2022 Share Posted July 31, 2022 3 hours ago, AlphaUMi said: Hi Juketsu! What is CTC? And download from where? GitHub? CTC is the Community Theme Creator and is available on our forum. If a user publishes the theme development files (different than the actual theme) for a theme created in the CTC any user can download those files and edit the theme directly to create their own custom look. 1 Quote Link to comment Share on other sites More sharing options...
