Jason Carr

XAML Tips and Tricks

Recommended Posts

I'll tell you how to do the 2nd one if you share those platform images :P

(i found the site the come from but downloads are no where to be seen)

Share this post


Link to post
Share on other sites

@shinra358 Ahahah.

Yes, They come from DarkUmbra forum. You need to creat a forum acount for download and go into topics. Unfortunately many platform are missing and the resolution is low (600x300px). Enough for my little 1024x768px. I had to do (or redo) a lot myself.
Maybe I will take the time to create an entire HD set myself, based on this style. I will share it then!

Well, now : the code tricks ! :P

Edited by viking

Share this post


Link to post
Share on other sites

Wasn't the website I was expecting. They actually came from a french site. But where on darkumbra are they? yes, I already have an account there. What name should I search for?

Share this post


Link to post
Share on other sites

Yes. Right clic/save as direct forum the post. Small resolution like I said. And yes, silver one as shadow. Black one don't.

Share this post


Link to post
Share on other sites

Doh! But me not want no shadow :(

Okay, okay. Here ya go:

Find these values:

CameraZPosition="3.0" VisibleCount="14"



Decrease the value of CameraZPosition to make the platform images on the wheel bigger.

Located here: PlatformWheelImageDetailsThumbsFiltersView.xaml



VisibleCount only draws the specified number of platforms to show (I think).

You can do this the same way in the game wheel section.







Share this post


Link to post
Share on other sites

Like I said, I probably make my own set. With no shadows [emoji6] I share this here.

Envoyé de mon Nexus 5X en utilisant Tapatalk

Share this post


Link to post
Share on other sites

I just did them myself while waiting for some new orders. It was pretty easy to get rid of the shadow based on the magic wand settings so I'm good now. I need to remake the nes one because that one doesn't look good :P  The rest look great though.

Share this post


Link to post
Share on other sites

You should make a Wiki for launchbox where we can post all this stuff, would be easier than using a forum to look up reference code.  You could have sections on how to set up different systems on it too (you already have the videos you can put as links on it).

Edited by spektor56
  • Like 2

Share this post


Link to post
Share on other sites

Here's the MinimalHD theme done 100% in XAML instead of using images if people want to see how to do it.

https://drive.google.com/open?id=0B6VxVfJp98SldDlwVjJ4RjA3SUU

It just uses plain background colours, 2 triangle polygons, and 2 drop shadows.  The scan line effect is done with a 1x5px tiled transparent png.  An important setting i found was SnapsToDevicePixels , without this setting there was a tiny gap between grid columns and rows.

Edited by spektor56
  • Like 3

Share this post


Link to post
Share on other sites

Thanks @shinra358 ! The Wheel Logo code works whell =)

Now remains to find out how to align  logos to the left !! (not centered) Any ideas everybody ?

And with the latest update, I could integrate the platform images from "DEVICE" folder. But not against, there is no more transition effect !!! If I a copy / paste  the old code, I get an error message. How to do that? (I wish a vertical sliding on these images from the DEVICE folder)

Share this post


Link to post
Share on other sites

Hi guys, I'm working on allowing you to better customize the images in the wheels; that is coming. Also, if you haven't checked out the latest beta from yesterday there is a new Documentation.pdf file in the LaunchBox\Themes folder that should *really* help. :)

Share this post


Link to post
Share on other sites

Hi code killers ! I'm totally noob and I need help for my theme. Here, I work on GameList page.

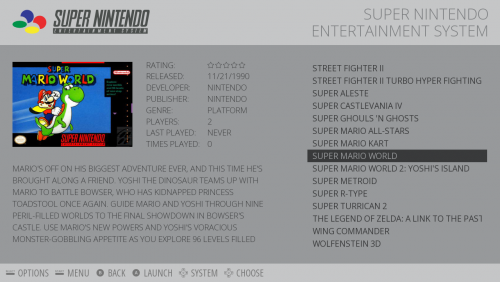

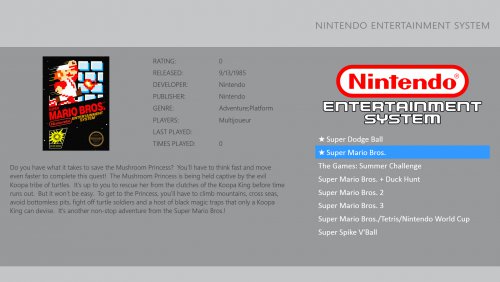

I make this :test_gameview.jpgThis is the goal (original EmulationStation theme):theming_list.png

  • How force TextBlock to show text in CAPITAL ?
  • How force TextBlock to fix a text size, aligned right, with a automatic return line ?
  • I do not have the stars in the "RATING". Still the good code from "documentation.pdf" ?
  • Where change color / font to the game list?
  • I do not know how to leave the platform logo of the list. And put it on the top left ?

Thx !!

Share this post


Link to post
Share on other sites

Hi @viking, awesome progress here.

1. This might work:


<TextBox CharacterCasing="Upper" Text="{StaticResource String1}" />

2. If you change the name of the TextBlock, it should no longer be automatically dynamically sized. TextBlock has these properties which should help: TextWrapping, TextTrimming, HorizontalAlignment, VerticalAlignment

3. I need to come up with a solution for the stars there; added that to my list.

4. In ThemedStyles, there's the ListBoxItemStyle.xaml and ListBoxStyle.xaml files. I think those would be the best place to set the font and color for the text lists.

5. The platform logo can be turned off in the options, or you can simply get rid of it from the TextListView.xaml file. You can add it somewhere else and refer to the Documentation.pdf for that.

I can elaborate more on any of these if needed. :)

  • Like 1

Share this post


Link to post
Share on other sites

With star rating, I've noticed none of game have a star rating and when trying to update the metadata it's still not updating the star rating, so all my games are at 0 stars. Only way I can get the star rating to show is if I go into LaunchBox and to the game and rate the game there myself with a star rating. It will then show in BigBox in the theme where I added the code. Is this normal?

Share this post


Link to post
Share on other sites

Thanks @Jason Carr !

#1. Capital text : Your code is not working. I have an error in Visual Studio and in BigBox. Maybe I badly integrated ?!

#2. Text size : I found a way.

#3. Stars : I found a solution, in other theme code ! Thx to @Grila =)

#4. Text color : I found, thx !

#5. Platform logo : Yes, I could delete the options ! But impossible to place the top left (instead of GameClearLogo in my screen)

All I need is one thing: the platform logo at the top left. According Documentation.pdf :

This line call the GameClearLogo. I dont whant that here.


<Image Source="{Binding Path=SelectedGame.ClearLogoImagePath}" />

This line call the PlatformClearLogo. But this dont work in game page ! Blank aera.


<Image Source="{Binding Path=SelectedPlatform.ClearLogoImagePath}" />

How do I do that ???



I'm not going to pollute more this thread. More in the dedicated thread.


Thx all xD

Edited by viking
  • Like 1

Share this post


Link to post
Share on other sites

Ah, gotcha. Per #1, I haven't ever tried that to be honest, I just did a web search and that's what came up. I hadn't thought about that for #5, so that might not be possible currently. I'll add both of those options to my list to take a look at soon. :)

That is looking really great though!!!

@Sithel, yes the star ratings do not currently come from the games database as of yet, but that is on the docket to add. :)

  • Like 1

Share this post


Link to post
Share on other sites

Hi guys, i didnt wanna start a whole new topic to ask this question. I have a modded 'MinimalHD' theme that i have been messing with for my own use... I had these little tags that popped up for a games respective playmode & age rating. During 6.9-beta these worked perfectly and heres an example of how it looked...




<Image Source="pack://siteoforigin:,,,/Themes/My Theme\Images\Tags\Multiplayer\2 Players.png" RenderOptions.BitmapScalingMode="HighQuality" DockPanel.Dock="right" Margin="0,0,5,0">



                        <Image.Style>



                            <Style TargetType="Image">



                                <Setter Property="Visibility" Value="Collapsed" />



                                <Style.Triggers>



                                    <DataTrigger Binding="{Binding SelectedGame.PlayMode}" Value="2 Players">



                                                                            <Setter Property="Visibility" Value="Visible" />



                                    </DataTrigger>

However in 6.10-beta-9 both of these tags have stopped showing i'm guessing because the xml files have been split into separate xmls, this might have something to do with it... But i did the same for games with favourites, portables & broken selected and they still work. Any help on how i can fix this for the current version of launchbox would be very helpful.

Edited by Liam
