Haggie55

MFME in LaunchBox

Recommended Posts

Hey All

This is the slot machine emulator MFME in LaunchBox

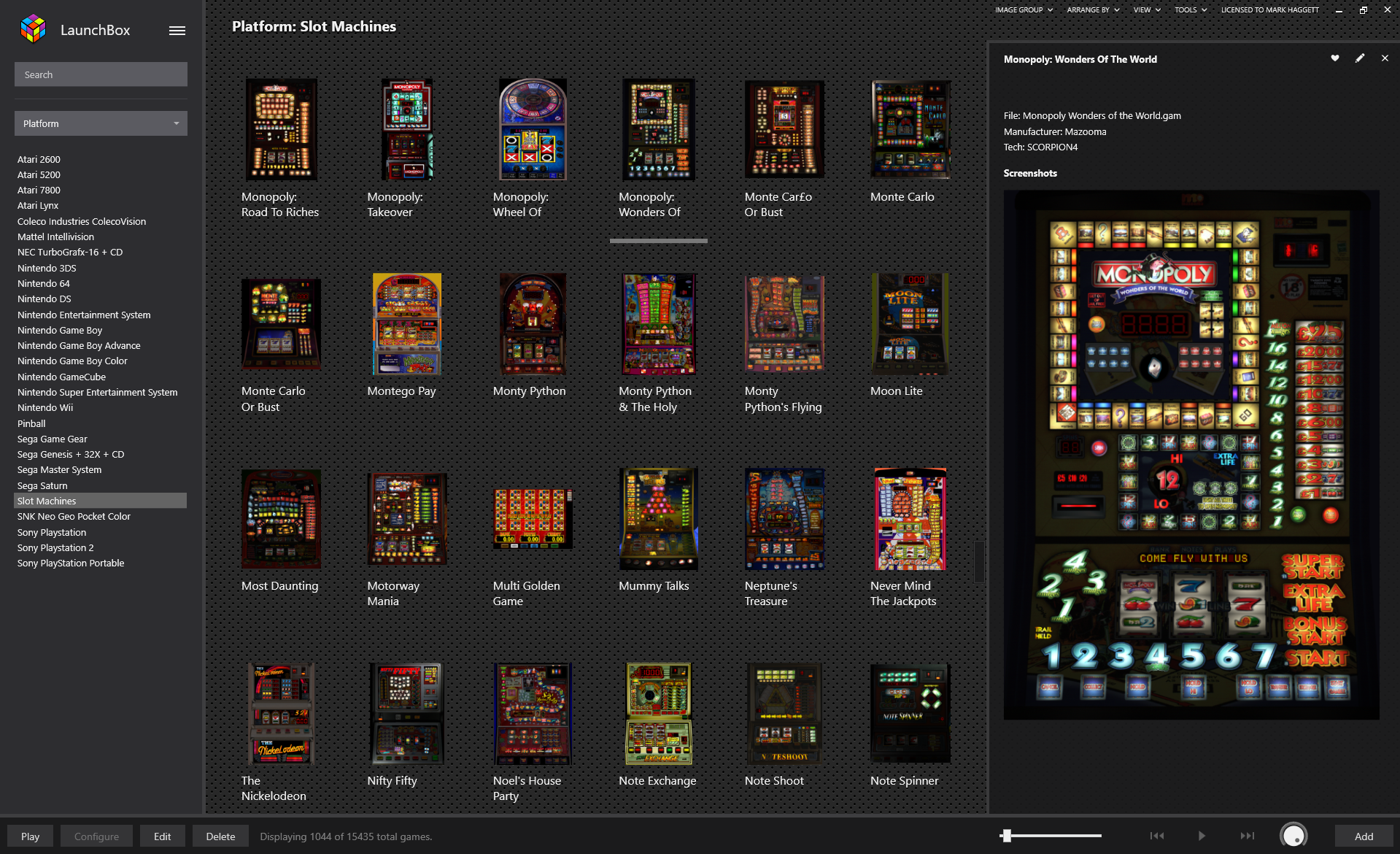

I think it looks ok...  :)686744690_ScreenShot11-12-18at05.22AM001.thumb.PNG.1b709453ab1deb9203fd3749fa537db1.PNG

A brief guide to setting up MFME & putting it in LaunchBox

MFME stands for Multi Fruit Machine Emulator - it's like VisualPinball in that the roms are emulated and the appearance of the slots is simulated

You can download the current version (6.1) here - you'll need to join and post to access the downloads:

http://www.desertislandfruits.com/forum/index.php?/files/

The site also has a large selection of slots - and the following sites are the other main locations for slots:

http://www.fruit-emu.com/

http://dadsfme.co.uk/index.php

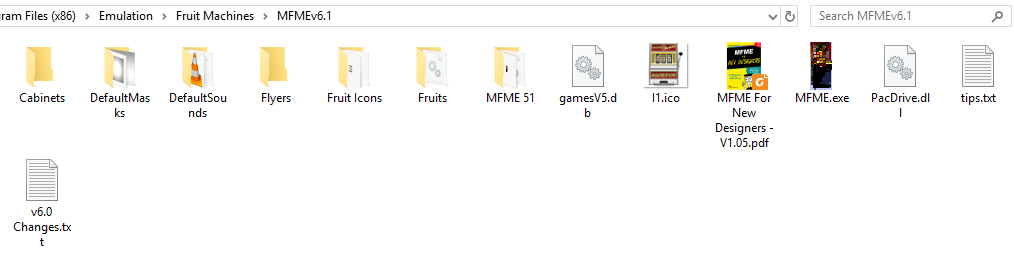

Install MFME wherever you like, and you’ll end up with something like this:

909343524_ScreenShot11-12-18at02_30PM.thumb.PNG.12ff03af5f4b86f77b0d24df5079f412.PNGThe folder “Fruits” you need to make yourself – call it what you like – and this is where the slots go

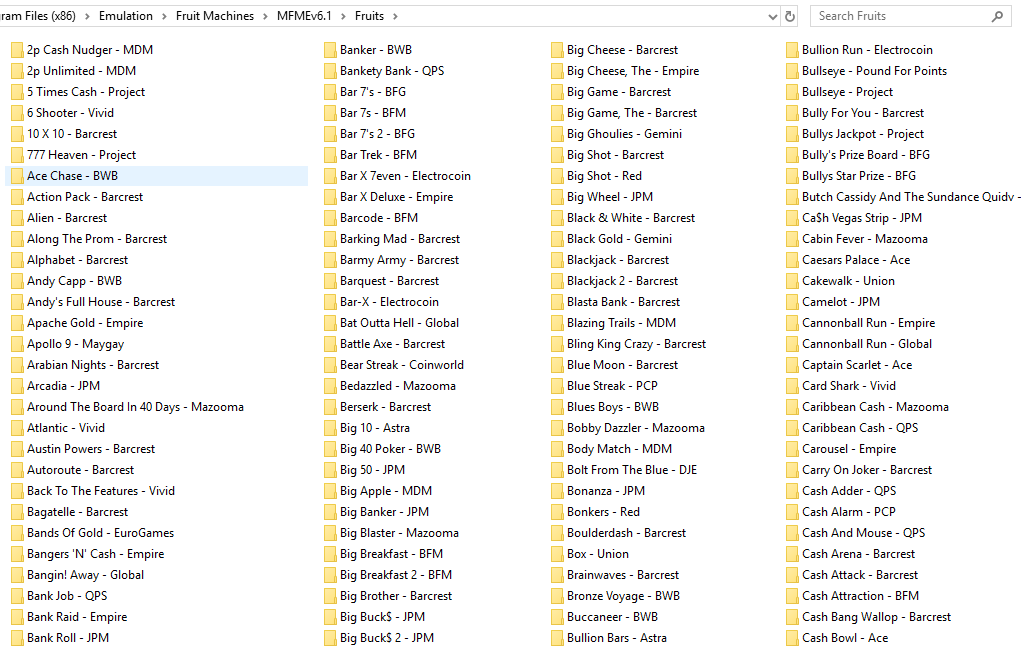

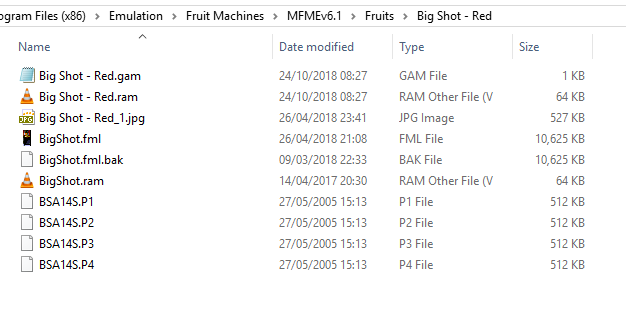

Each slot needs its own folder and the .zip needs to be unzipped in the folder – so you’ll have something like this:






To put MFME into LaunchBox add the emulator like any other, so just point LaunchBox at the MFME.exe

You will then need to add each slot individually, so select “Import… Rom File” and add the xxx.gam file – no need to try and download any metadata, MFME is a complete mystery to LaunchBox :)

To add the images launch a slot then screengrab it – don’t use MFMEs own screengrabber as it gives poor results – use Gadwin or similar

Then set the image as Box-Front & Screenshot-Gameplay or however you have your LaunchBox setup



That’s it :)



Edited by Haggie55
  • Like 3
  • Thanks 1

Share this post


Link to post
Share on other sites
4 hours ago, Scriven said:

Looks fantastic. Any chance on a tutorial of some sort?

I've added a guide to the OP - hope it makes sense :)

  • Thanks 2

Share this post


Link to post
Share on other sites
3 hours ago, Haggie55 said:

I've added a guide to the OP - hope it makes sense :)

Thanks, that's awesome. Can't wait to test it. :)

Share this post


Link to post
Share on other sites
18 hours ago, zetec-s-joe said:

These look great, wonder if they have deal or no deal haha

There is no end to how many of those damn things there are... :D

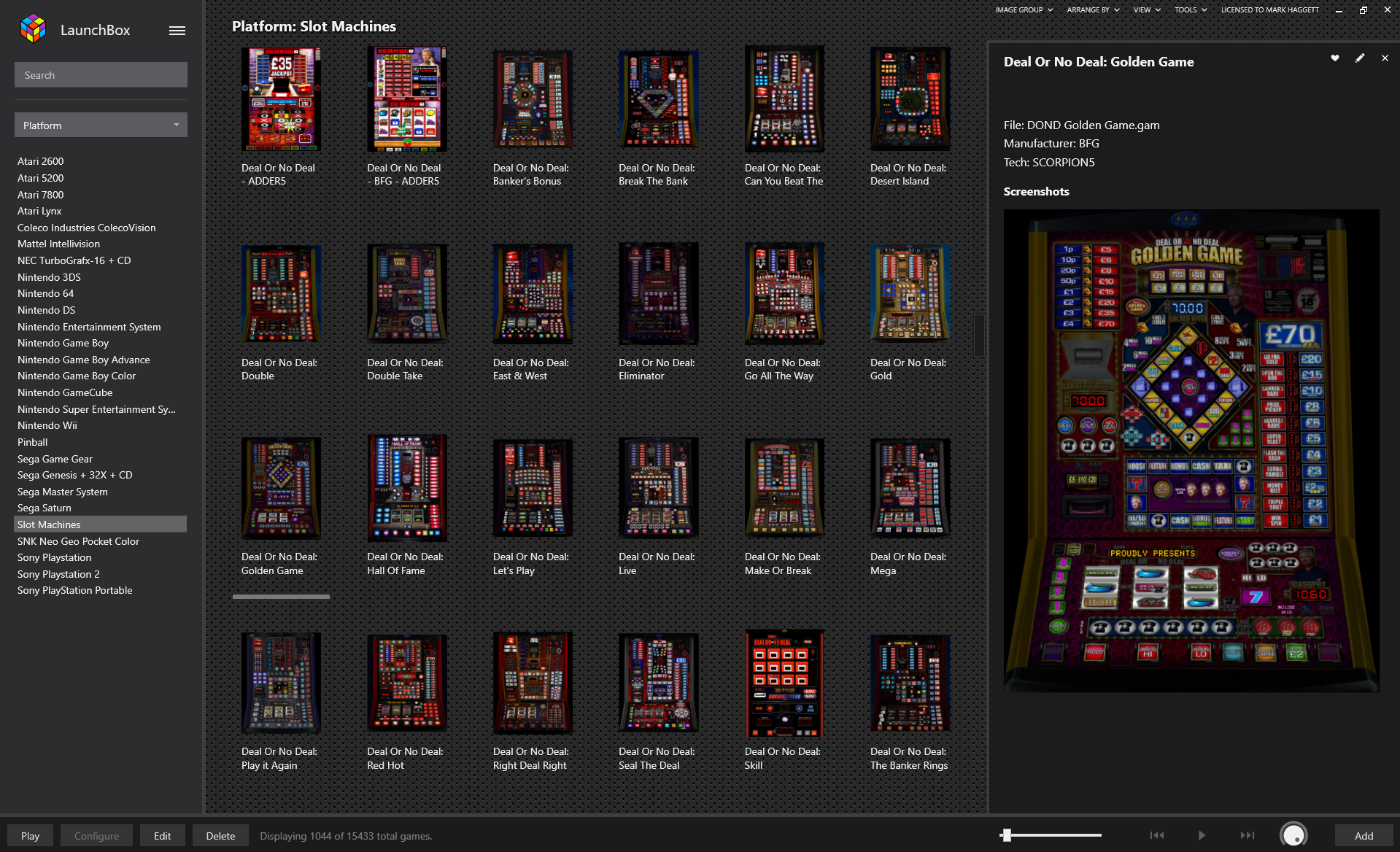

Screen Shot 11-20-18 at 12.44 PM.PNG

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

How does the emulation compare to the MAME slot machine emulation?

Regarding the screenshots - you mention to launch each game and then screen grab it - this would be very time consuming given that there appear to be 1044 slot machines in your collection! Have you made shots for them all? Would you be willing to share? :)

Edited by Dan

Share this post


Link to post
Share on other sites
On ‎11‎/‎26‎/‎2018 at 10:30 AM, Dan said:

How does the emulation compare to the MAME slot machine emulation?

Regarding the screenshots - you mention to launch each game and then screen grab it - this would be very time consuming given that there appear to be 1044 slot machines in your collection! Have you made shots for them all? Would you be willing to share? :)

I've no idea which emulator is the more accurate.

But MAME only emulates the roms, it doesn't re-create the image of the slot. MFME emulates the roms, but is also an editor that allows the creators to re-produce the appearance of the slot - normally from a scanned flyer.

It is time consuming screen grabbing all the slots, but LaunchBox brings out the obsessive in me :)

I can make a package of images if anyone wants them, but you'll still have to manually match each image to the slot as I have re-named most of the slots. Also the image won't exactly match the original slot as I alter the LED and/or dot matrix displays to my preferred look.

So let me know if you want an image package and I'll sort it out :)



  • Thanks 2

Share this post


Link to post
Share on other sites

That makes sense. The MAME emulation of slots isn’t that great without a re-production of the appearance of the machine as a whole. A different story from what seems to be happening with MFME!

Yes, I would appreciate such an image package, thanks! Manually matching the images is still some work but nothing compared to getting all the screen grabs!



Share this post


Link to post
Share on other sites
2 hours ago, Dan said:

That makes sense. The MAME emulation of slots isn’t that great without a re-production of the appearance of the machine as a whole. A different story from what seems to be happening with MFME!

Yes, I would appreciate such an image package, thanks! Manually matching the images is still some work but nothing compared to getting all the screen grabs!



Here they are :)


https://drive.google.com/file/d/1M9F25SiXjI_ONcNGZm2SEpA7IxA5zBD8/view

  • Like 1
  • Thanks 3

Share this post


Link to post
Share on other sites

wow, another project i need to get started on! lol  Im not even finished the first 18 projects. lol

:)   this looks real good. i will be setting this up.  :)

thanks very much!

Share this post


Link to post
Share on other sites
6 hours ago, JoeViking245 said:

I see one that says MFME 9.4.  Is that something different?

The version numbering is confusing. MFME 9.4 is the old version, MFME 6.1 is the new version and the one you want :)

  • Thanks 1

Share this post


Link to post
Share on other sites
Posted (edited)

Is it the Win7 or WinXP of MFME 6.1 you need, if you are running Win10? Also, is there a way to download all the slots as a package? Or maybe you could share your fruits folder 😁😎

Edited by Dan

Share this post


Link to post
Share on other sites
19 hours ago, Dan said:

Is it the Win7 or WinXP of MFME 6.1 you need, if you are running Win10? Also, is there a way to download all the slots as a package? Or maybe you could share your fruits folder 😁😎

You need the Win7 version - I'm running Win10 and there are no compatibility issues. There's no slots package... so stay tuned & I'll put a link to mine in this thread within a week (probably) (:

  • Thanks 2

Share this post


Link to post
Share on other sites

Here is my collection of slot machines. The folder contains a few duplicated slots where I've updated to a better layout but not deleted the old one, and a few of the slots do not have the .gam file needed to run them, this is because if I didn't like the layout I deleted it within LaunchBox but didn't delete the slot's folder.

As mentioned in an earlier post, I've altered the LED/dot matrix displays to my preferred look - if you want to alter the appearance of any element of the slot machines just select Edit Mode from the Design menu then right click on any part of the image and you can play around with the appearance.

To keep yourself update with new releases visit the sites in the first post, and say thanks to the creators & if you feel like it make a donation to show your support 🙂

https://drive.google.com/file/d/1KuBJbonBKTKE0DwmkXcBFQGWuHNWwI6K/view?usp=sharing



Edited by Haggie55
  • Like 1
  • Thanks 3

Share this post


Link to post
Share on other sites
